WM, 519419 Removing And Installing Cover For Rear Underbody: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Screws securing left and right cover to body	Item 1	Tightening torque	2.5 (1.75 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

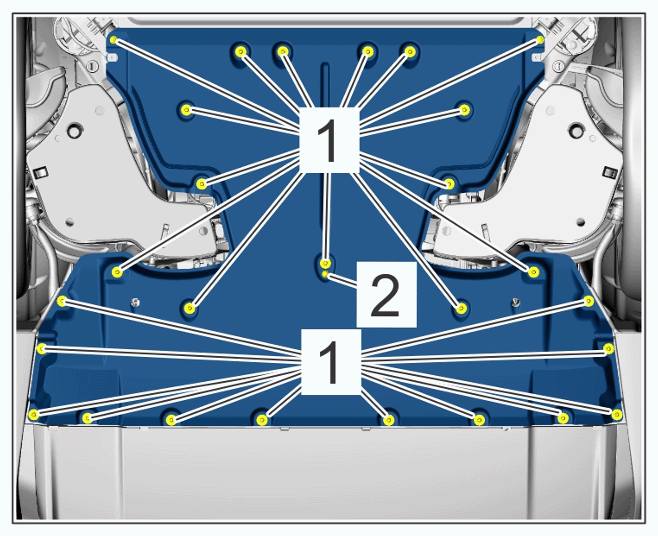

Screws securing rear underbody cover to body	Item 1	Tightening torque	2.5 (1.8 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening elements
