WM, 503819 Removing And Installing Lock Carrier: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

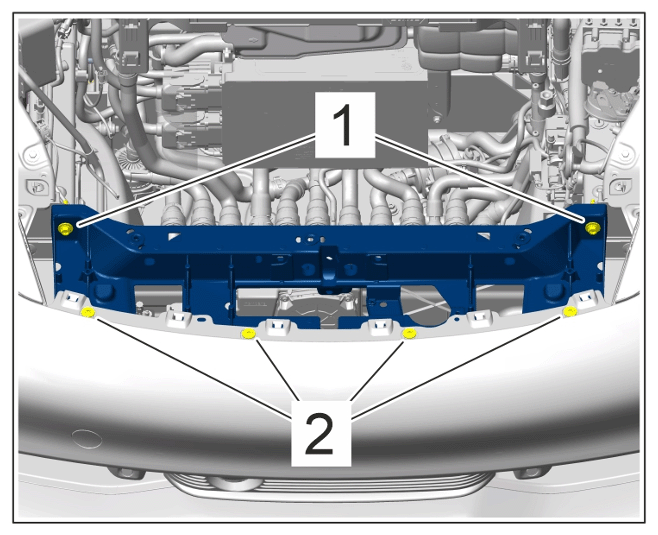

Screws securing pull strap to lock carrier	Item 1	Tightening torque	8 (6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

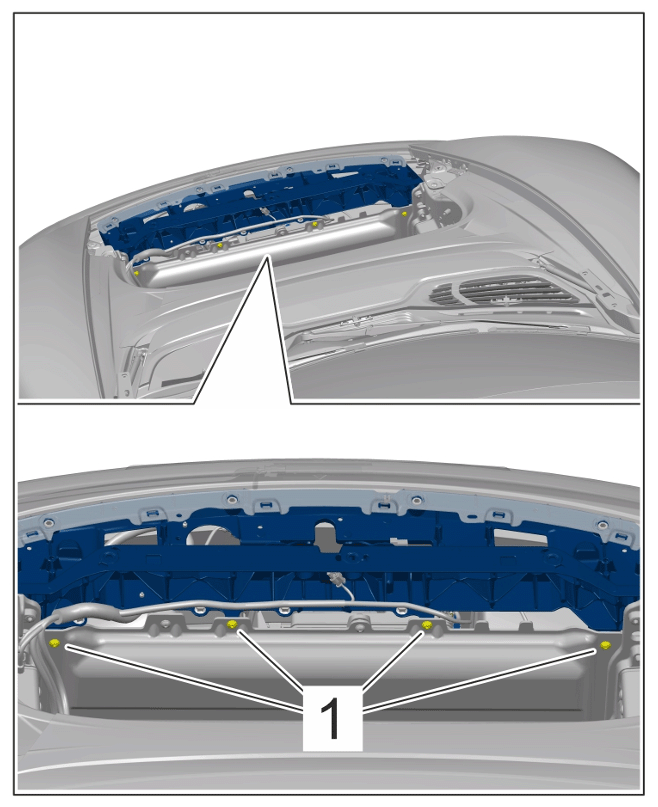

Screws securing lock carrier to impact absorber	Item 1	Tightening torque	20 (15 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screws securing front apron to lock carrier	Item 2	Tightening torque	5.5 (4 ft lb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

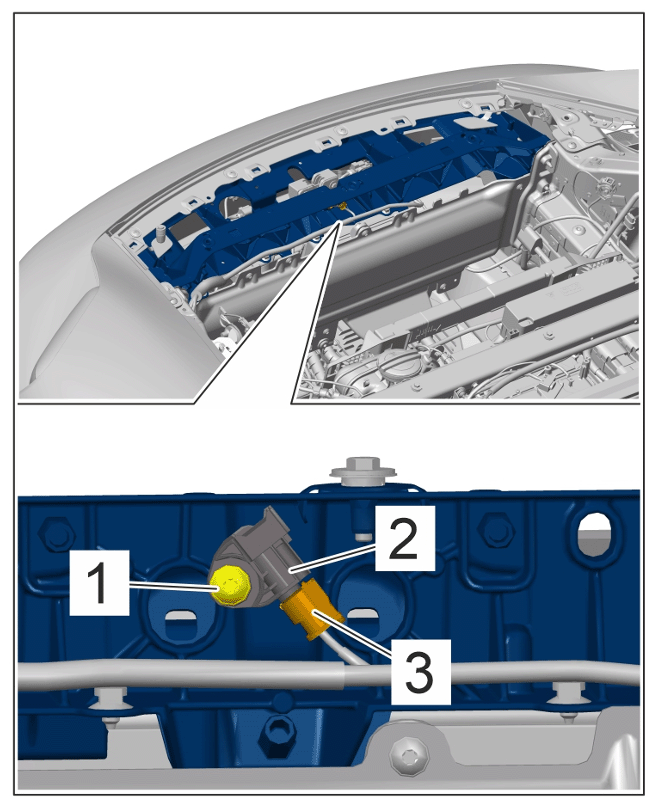

Screw securing sensor to lock carrier	Item 1	Tightening torque	9 (6.5 ft lb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front sensor

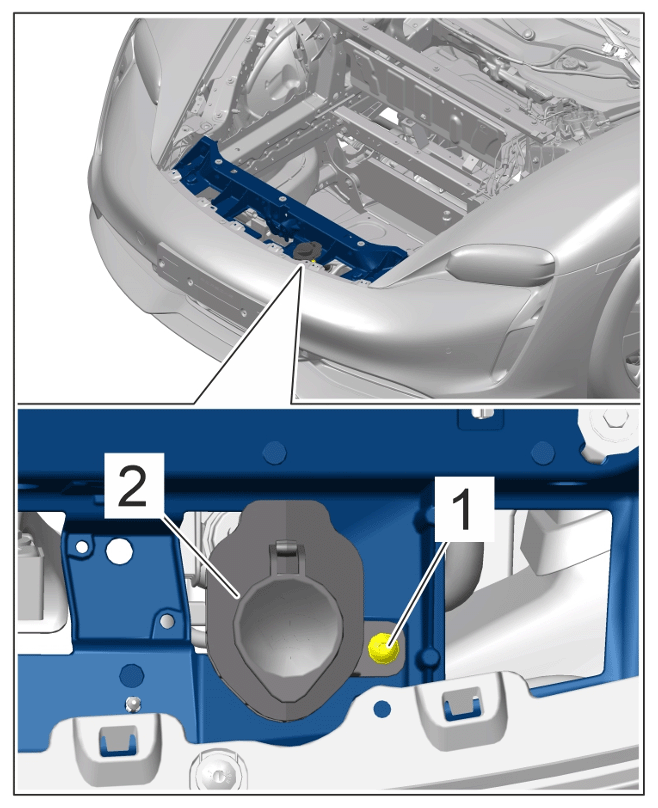

Screw securing washer-fluid reservoir to lock carrier	Item 1	Tightening torque	9 (6.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Washer-fluid reservoir
