WM, 503419 Removing And Installing Cross Member: Notes

Technical values

TECHNICAL VALUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

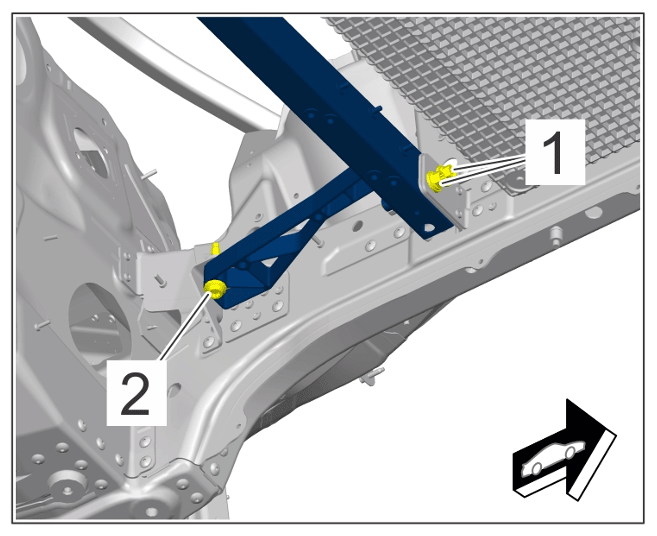

Cross member to body at front	Item 1/Initial tightening torque	Tightening torque	50 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Cross member to body at front	Item 1/Final tightening	Torque angle	180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Cross member to body rear	Item 2	Tightening torque	55 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
