Removing Windscreen Wiper System Spray Nozzle

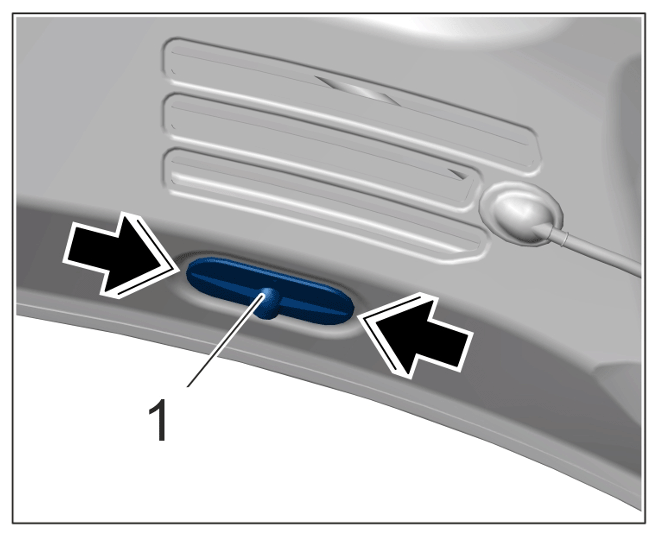

  1. Unclip windscreen wiper system spray nozzle -1-  at the sides -Arrows-  using a suitable tool.
    G15566681Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Windscreen wiper system spray nozzle

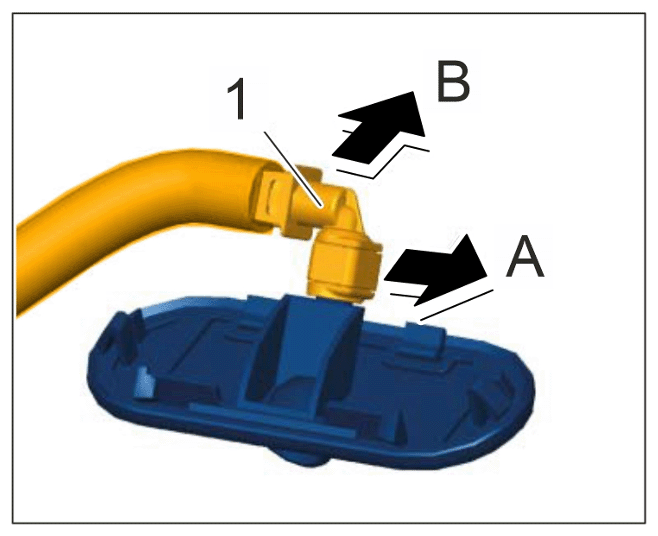

  2. Release windscreen wiper system line 1-  (-arrow A-  ) and disconnect it -arrow B-  .
    G15566682Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Windscreen wiper system line
