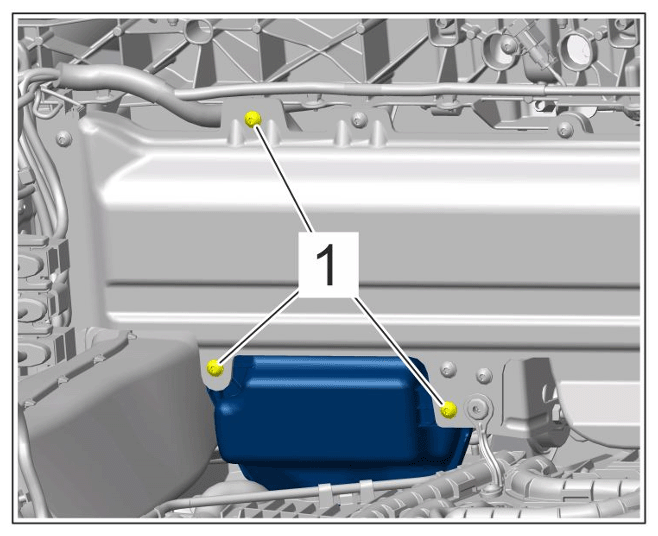

| Screw securing windscreen-washer reservoir to bracket |
item 1 |
Tightening torque |
8 Nm (6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Windscreen-washer reservoir |

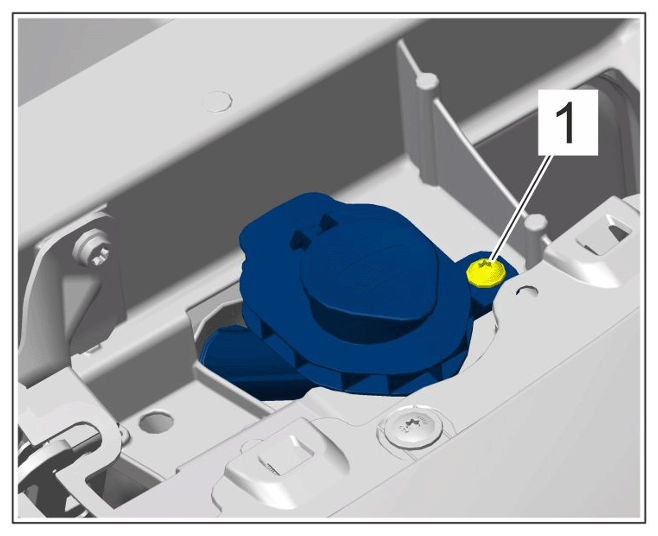

| Screw securing filler neck to lock reinforcement |
Item 1 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw |
