Removing Windscreen-Washer Reservoir

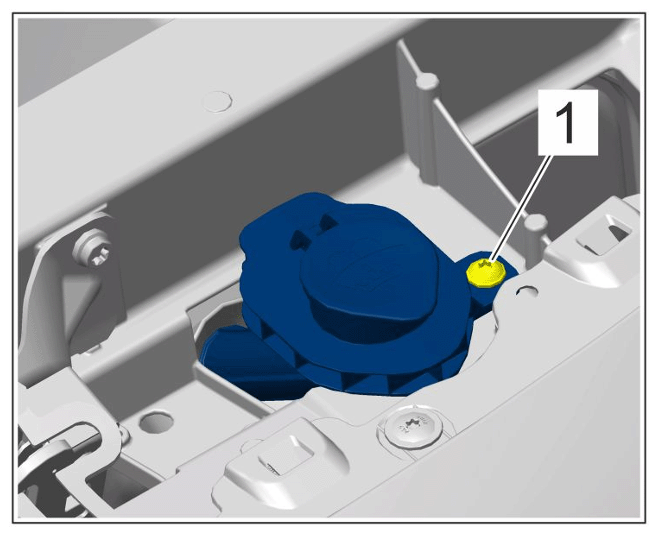

Unscrew screw -1- and remove filler neck.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

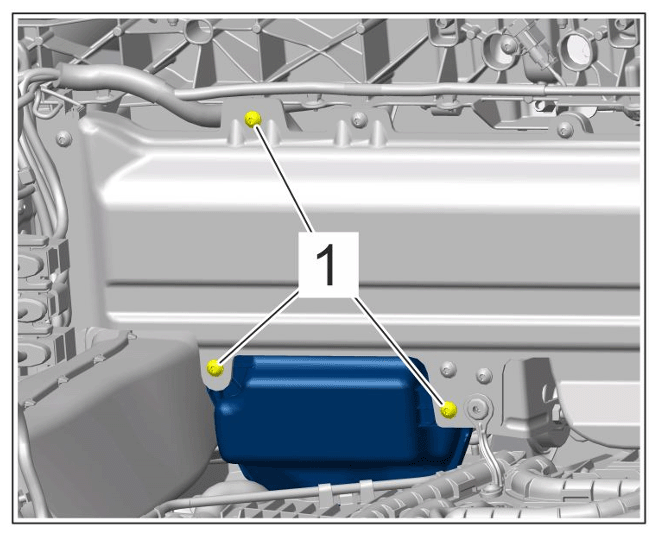

Unscrew and remove screws -1 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Windscreen-washer reservoir

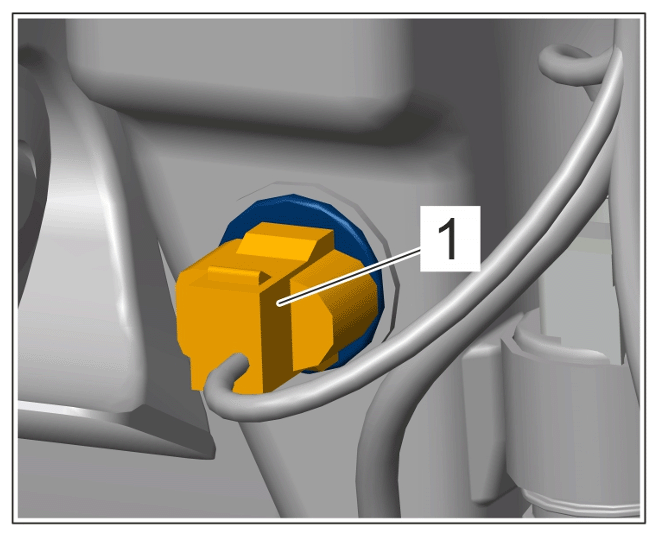

Release and unplug electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

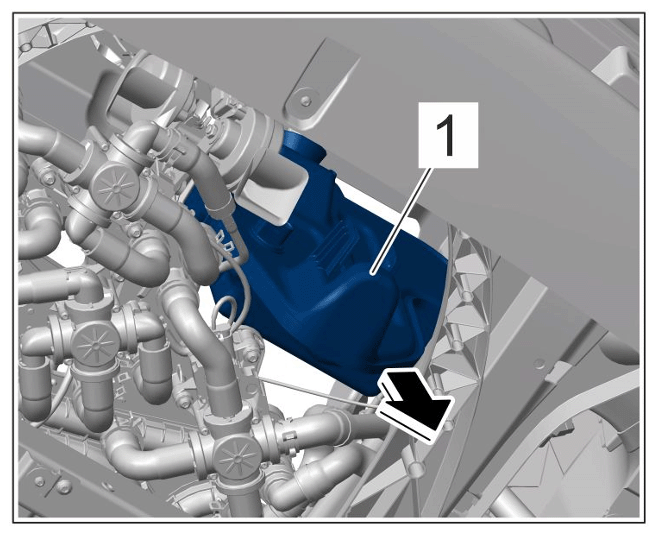

Guide windscreen-washer reservoir -1- down -arrow- and out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Windscreen-washer reservoir
