Removing Pump For Windscreen Washer System

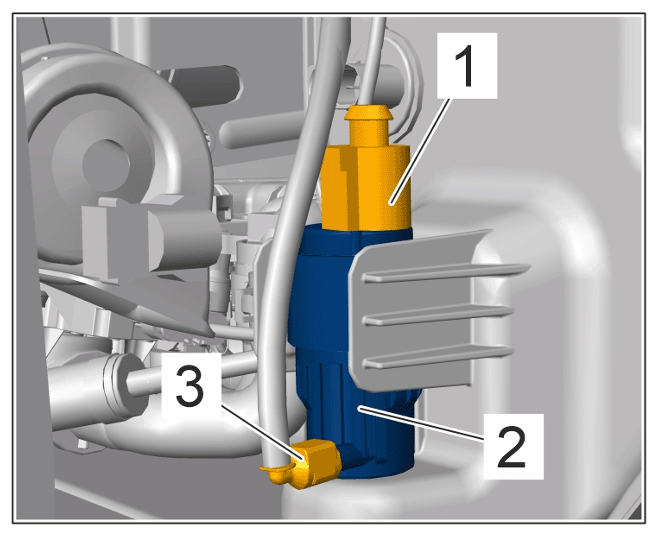

- Release and disconnect electric plug connection -1-
and plug connection for windscreen-washer system hose -3-
from pump for windscreen wisher system -2-
.
Electric plug connection

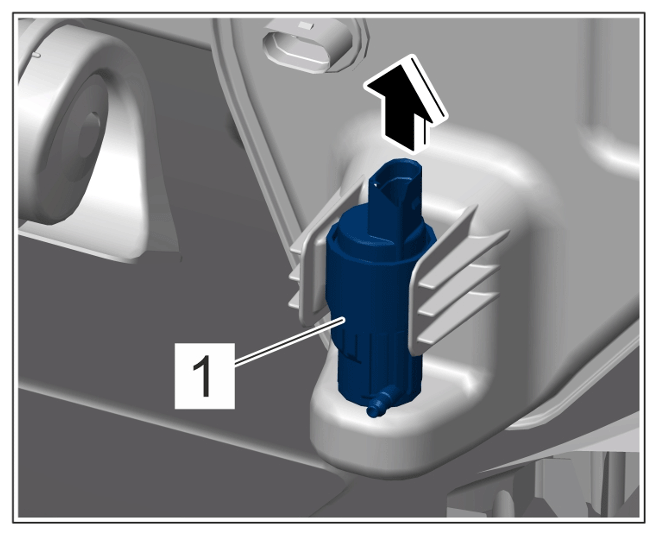

- Pull pump for windscreen washer system -1-
up -arrow-
and remove it from the bracket.
Windscreen-washer pump

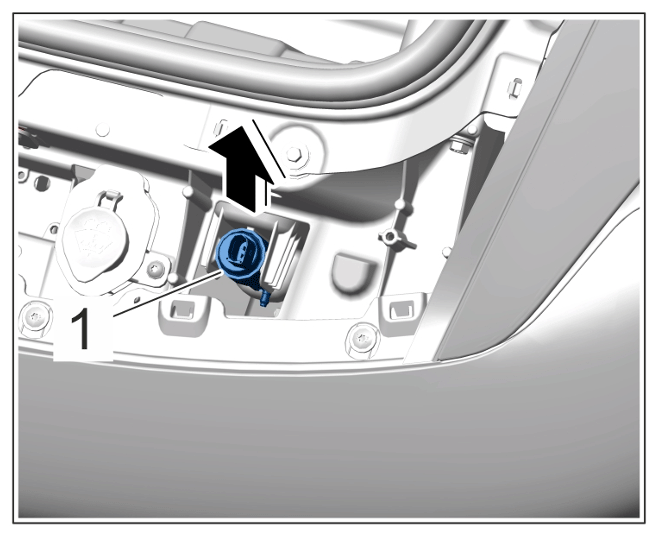

- Guide pump for windscreen washer system -1-
up -arrow-
and out through the service opening.
Pump for windscreen washer system
- Remove pump for windscreen washer system.
