Removing Hose For Windscreen Washer System

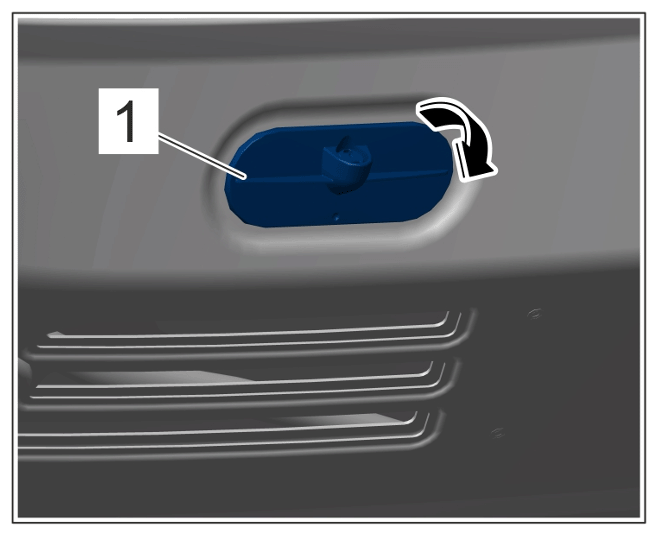

Unclip spray nozzle -1- using a plastic wedge -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spray nozzle

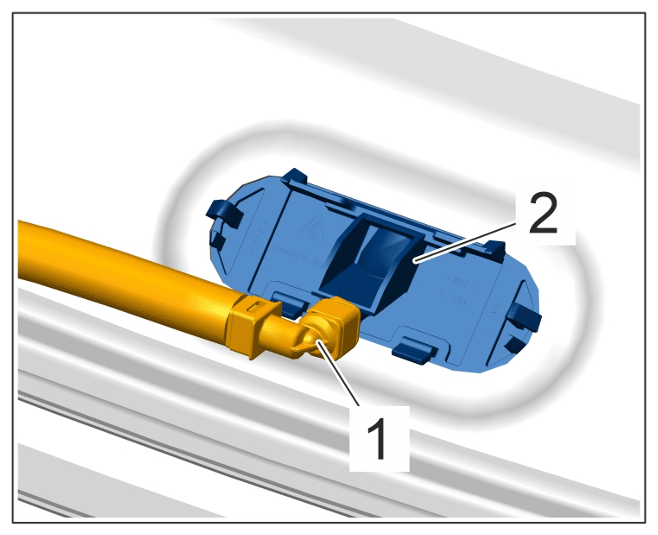

Release windscreen-washer hose -1- from spray nozzle -2- and pull it off.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Windscreen-washer hose

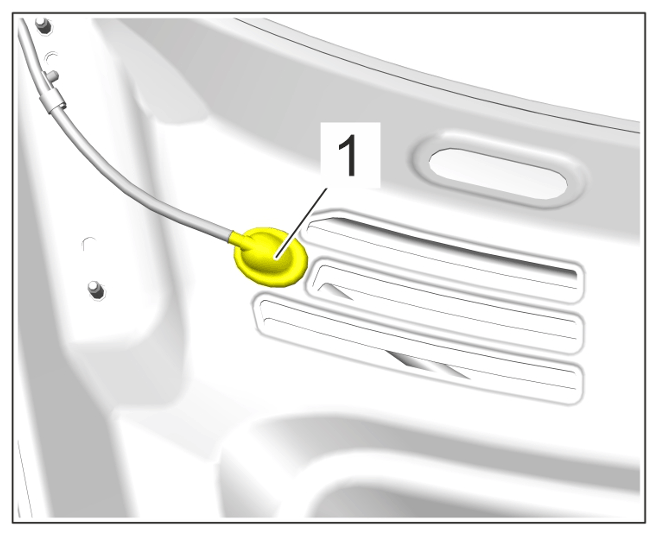

Guide sleeve -1- out of the front flap and pull out windscreen-washer hose.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sleeve

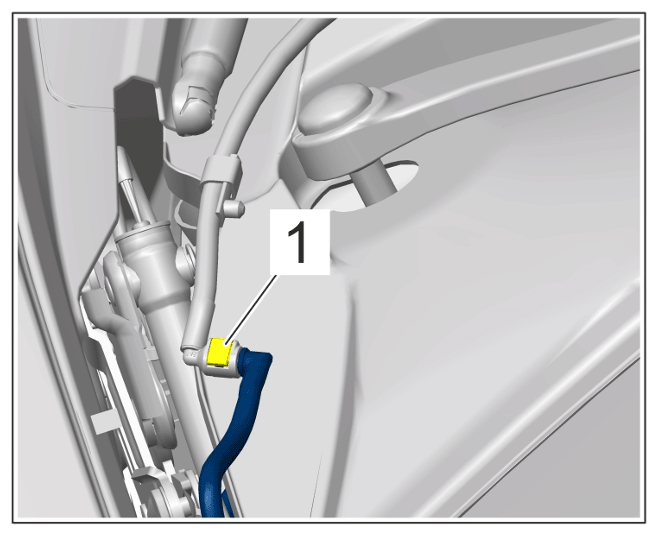

Release and pull off windscreen-washer hose -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Windscreen-washer hose

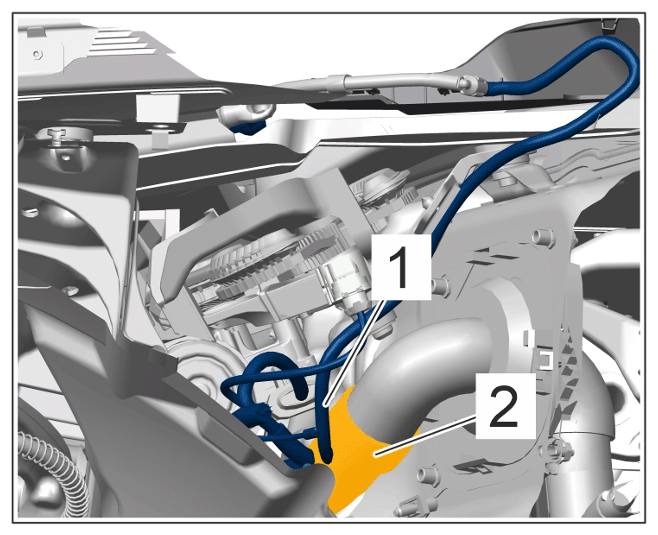

Loosen windscreen-washer hose -1- along the main wire harness -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Main wire harness
Remove windscreen-washer hose.
