Installing Wiper Blade

WARNING: Electrically moved components
  • Danger of limbs being trapped or severed
    • Switch off electric power to drive motor.
    • Make sure it does not switch on again.
    • Check that there is no electric charge.
  1. Engage wiper blade on the wiper arm -arrow A-  .
  2. Press locking mechanism together and engage it -arrow B-  .

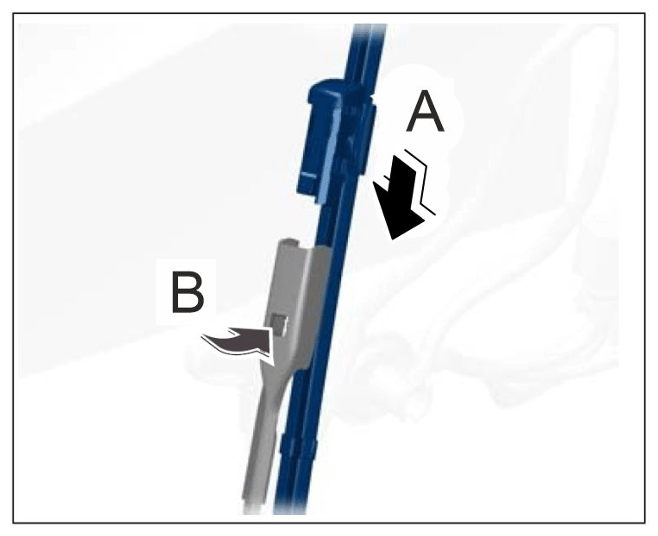

    G15566662Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiper blade

  3. Lower the wiper arm and check wiper function.
