Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing wiper linkage to body Item 1 Tightening torque 8 Nm (6 ftlb.)

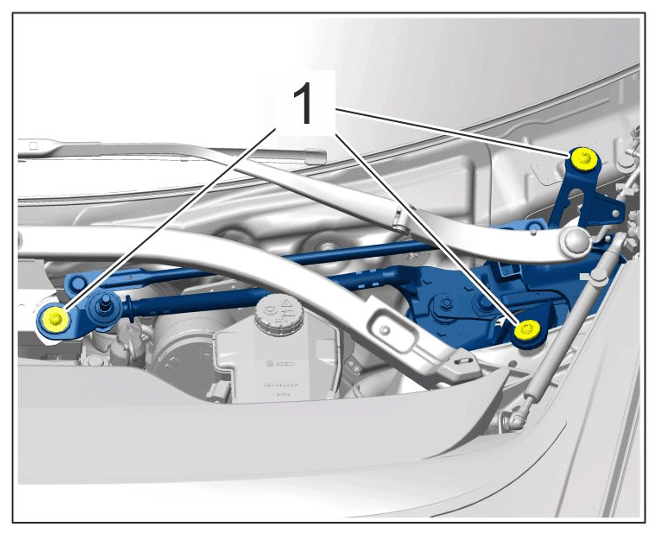

G15566649Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wiper linkage
