Removing Wiper Linkage

WARNING: Electrically moved components
  • Danger of limbs being trapped or severed
    • Switch off electric power to drive motor.
    • Make sure it does not switch on again.
    • Check that there is no electric charge.
  1. Unscrew and remove screws -1-  .

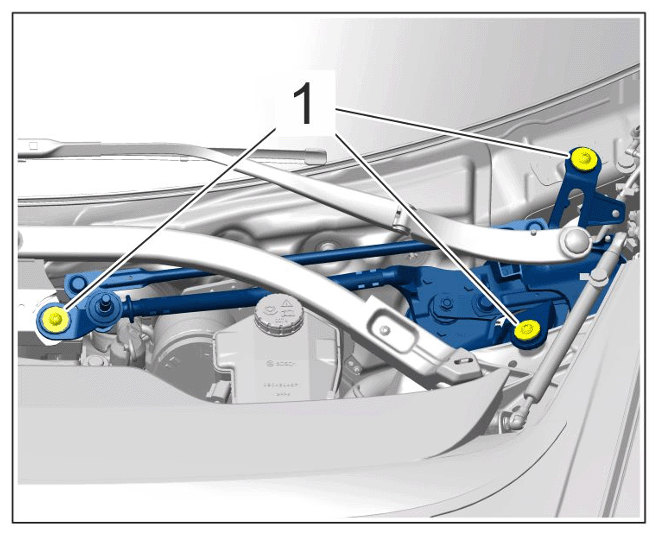

    G15566651Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiper linkage

  2. Release and disconnect electric plug connection -1-  for wiper motor.

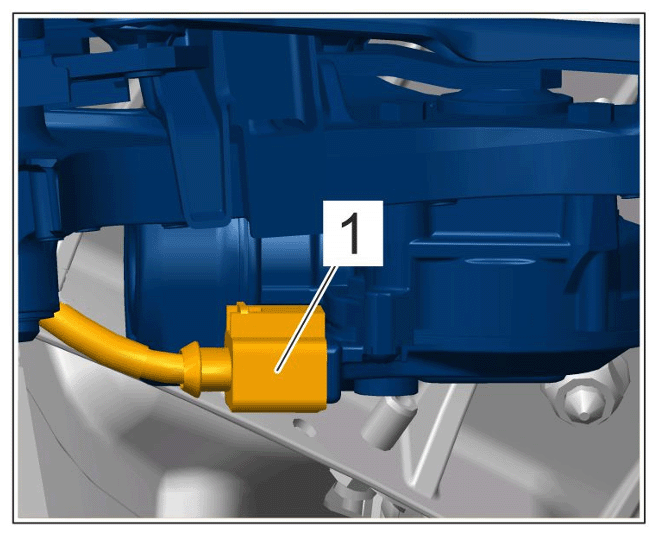

    G15566652Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Remove wiper linkage.
