Removing Front Power Windows

Information

Mark the position of the nuts.

1. Remove cover on front power windows mechanism -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

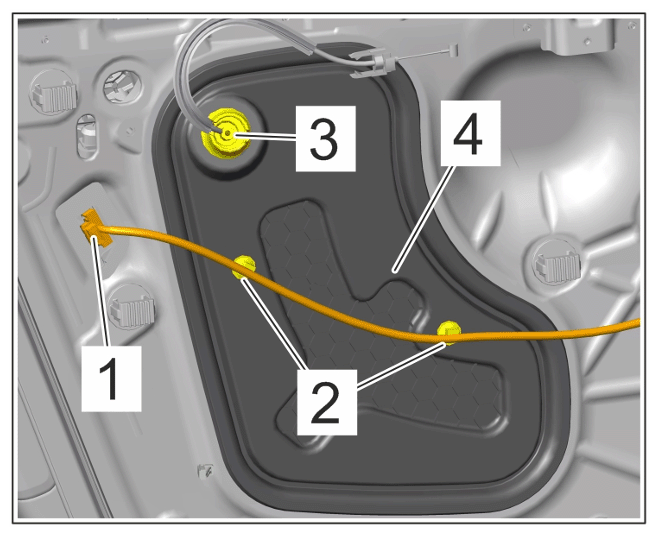

   Cover on front power windows mechanism

   1. 1.1 Release and unplug electric plug connection -1-  .
   2. 1.2 Loosen clips -2-  from cover on front power windows mechanism -4-  .
   3. 1.3 Press grommet -3-  through cover on front power windows mechanism -4-  .
   4. 1.4 Remove cover on front power windows mechanism -4-  .
2. Unscrew nuts -1-  and release and disconnect electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

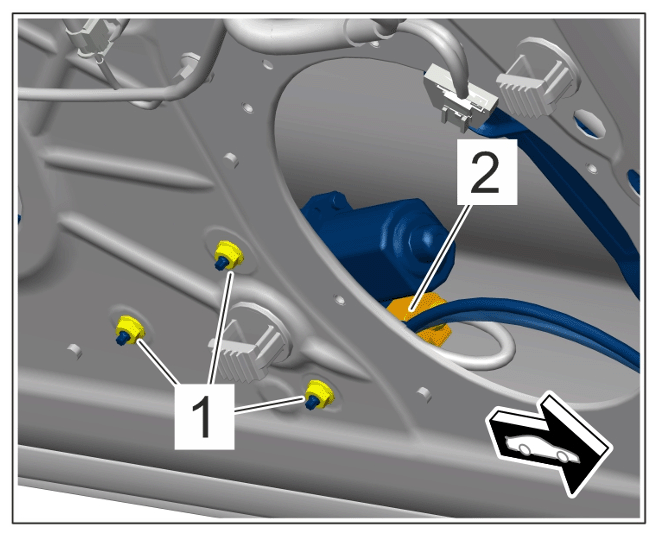

   Window regulator motor

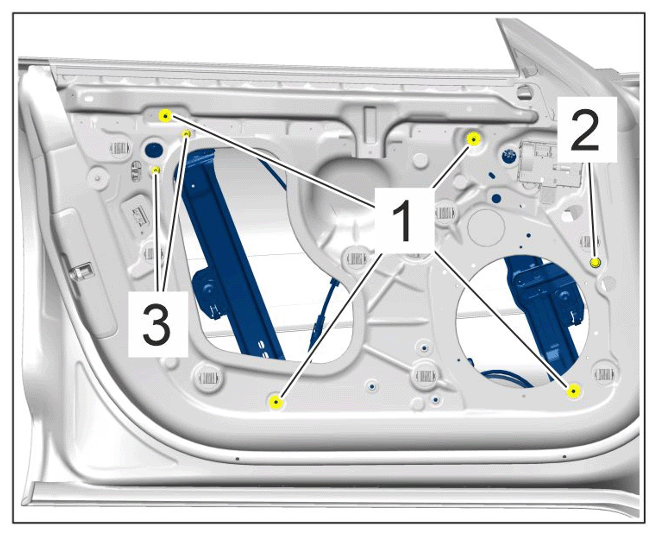

3. Detach front power window mechanism.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Nuts

   1. 3.1 Unscrew nuts -1-  .
   2. 3.2 Unscrew screw -2-  .
   3. 3.3 Unscrew and remove screws -3-  .
4. Remove front power windows mechanism.
