Installing Front Power Windows

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

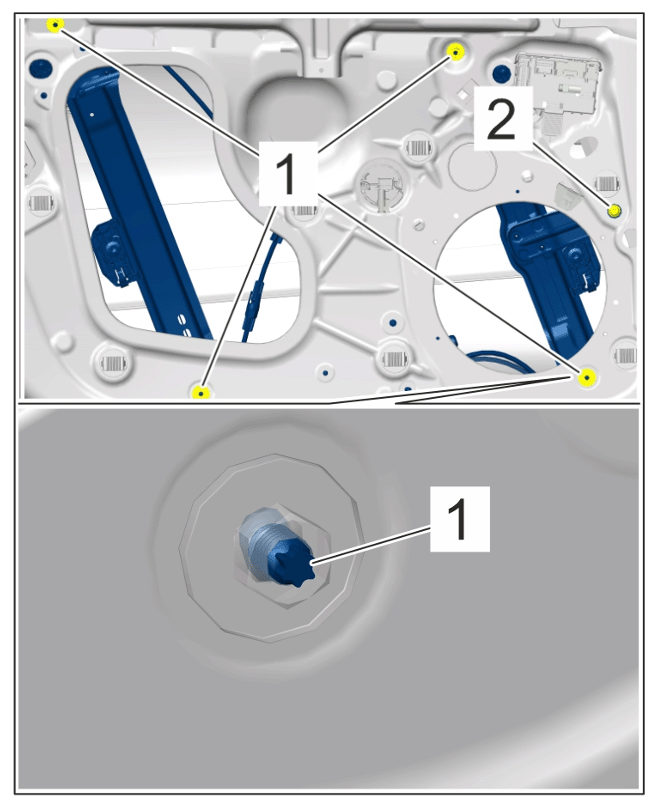

Adjusting screws

• Do not turn adjusting screws -1- during the fitting procedure.
• The adjusting screws -1- on the power windows spare part are preset.

Information

Tighten nuts at the marked position.

1. Installation is performed in reverse order. Pay particular attention to the following:

   Tighten screws for front power window mechanism to > Tightening torque 9 Nm  .

   Tighten screw for front power windows mechanism to > Tightening torque 8 Nm (6 ftlb.)  .

   Tighten nuts for front power windows mechanism to > Tightening torque 7.5 Nm (5.5 ftlb.)  .

   Tighten nuts on power window motor to > Tightening torque 7.5 Nm (5.5 ftlb.)  .
