Removing Front Window Guide

Information

Make sure not to damage the front door window.

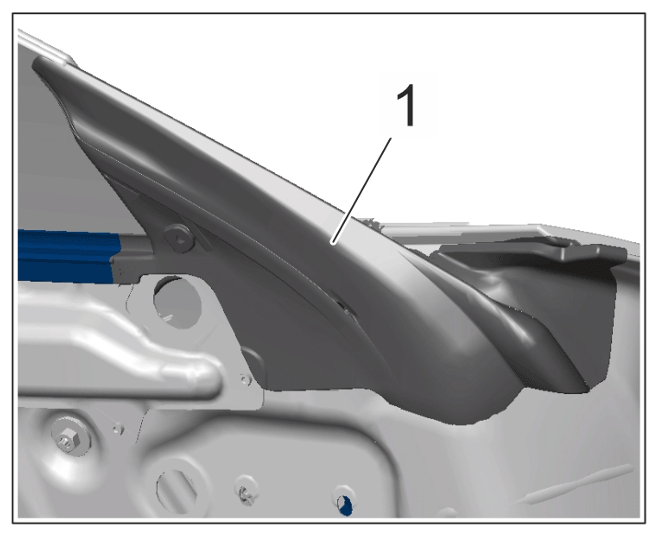

1. Loosen front window guide -1-  from door bodyshell.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

2. Loosen rear window guide -1-  from door bodyshell.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front window guide

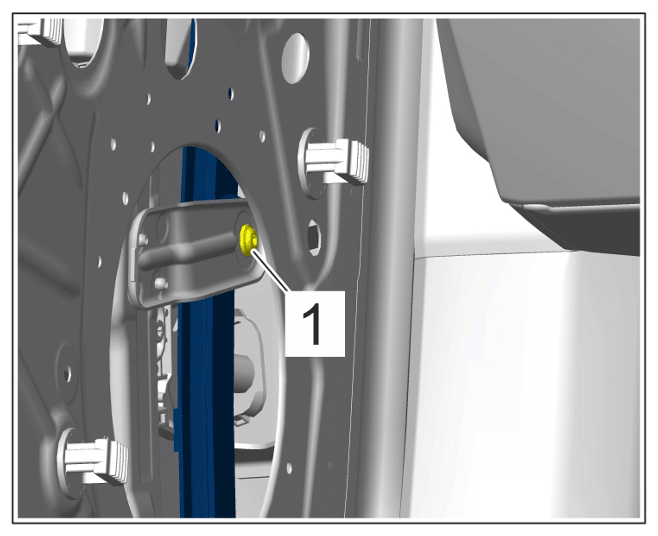

3. Unscrew bottom screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bottom screw

   Information

   The adhesive pad cannot be pulled off without damaging it and must always be replaced.

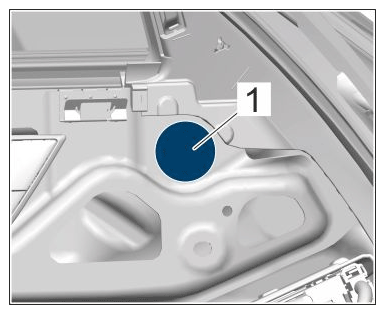

4. Pull off adhesive pad -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pulling off adhesive pad

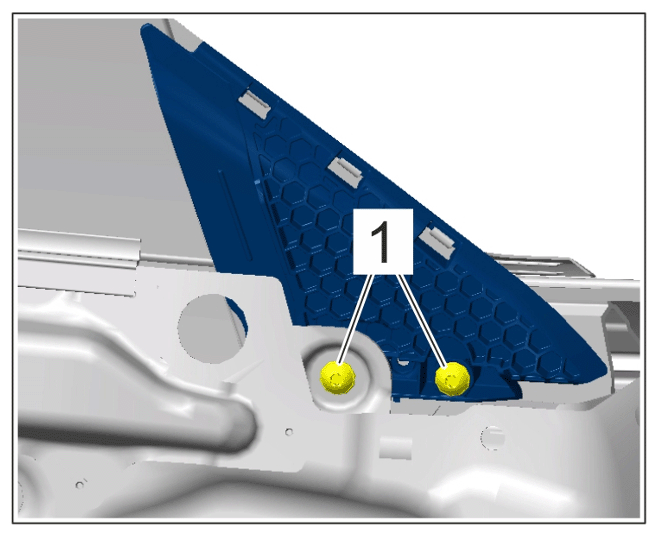

5. Unscrew screws at the top -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Top screws

6. Remove front window guide.
