Removing Multimedia Interface

  1. Open the armrest.
  2. Unscrew screws -1-  from mounting -2-  .
    G15566243Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Multimedia interface

  3. Remove multimedia interface -2-  .
    1. 3.1  Release tabs from mounting -1-  using a plastic wedge.
    2. 3.2  Pull multimedia interface -2-  forward -arrow-  until the electric plug connections -3-  are accessible.
    3. 3.3  Release and unplug electric plug connections -3-  .

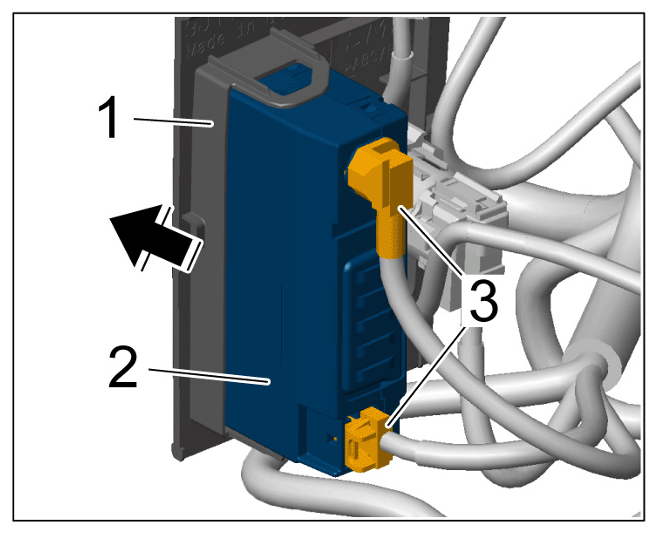

      G15566244Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connections

  4. Remove multimedia interface.
