Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Windscreen projection control unit to dashboard Item 1 Tightening torque 9 Nm (6.5 ftlb.)

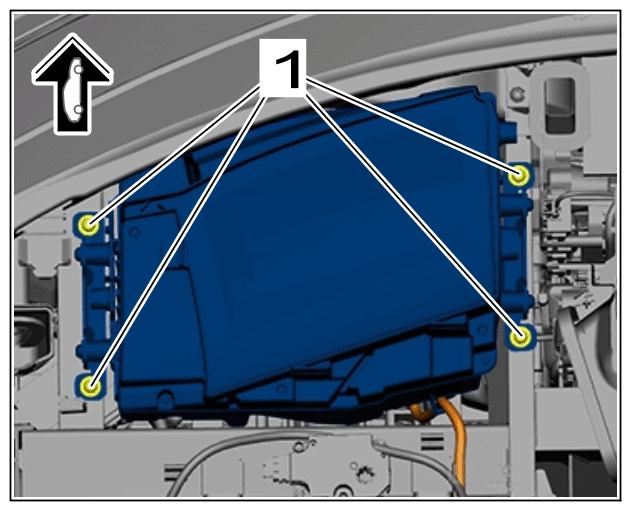

G15566206Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Windscreen projection control unit
