Removing Camera For Night Vision System

NOTE: NOTIFICATION
Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

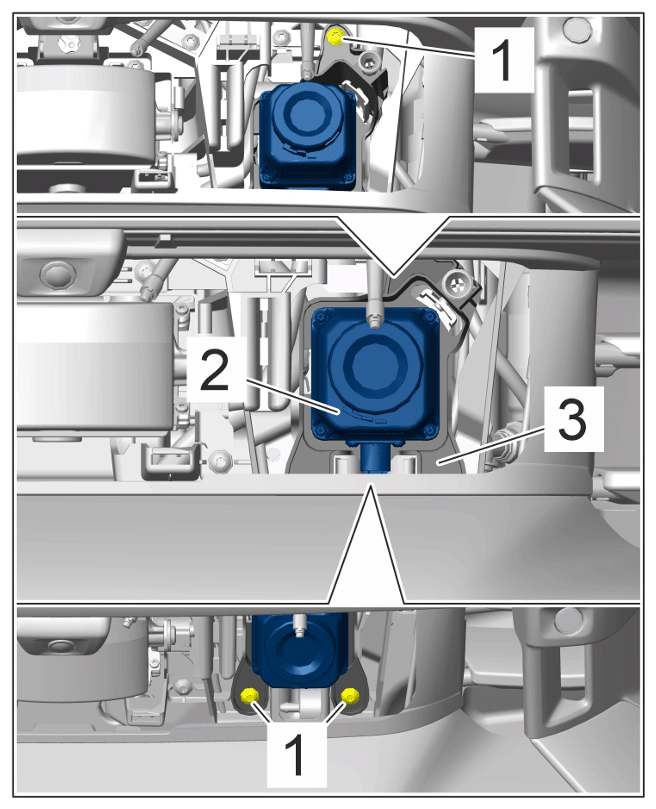

Unscrew screws securing camera for night vision system -1- to the fixed plate -3- and guide out camera for night vision system -2- until the electric plug connection is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for fixed plate

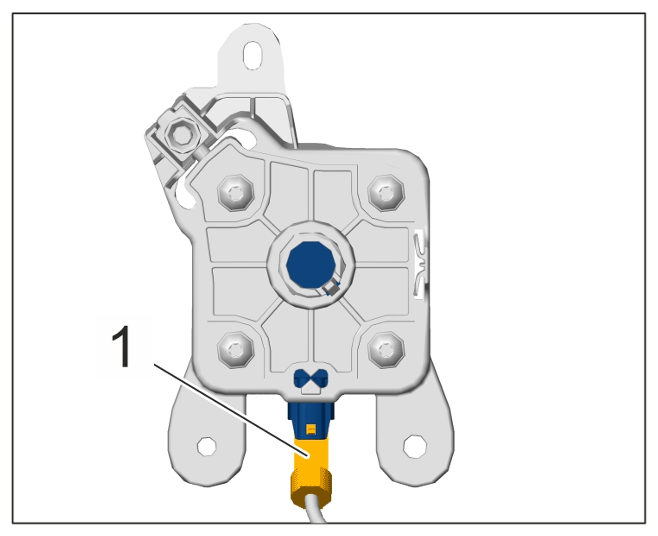

Release and disconnect electric plug connection on camera for night vision system -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on camera for night vision system

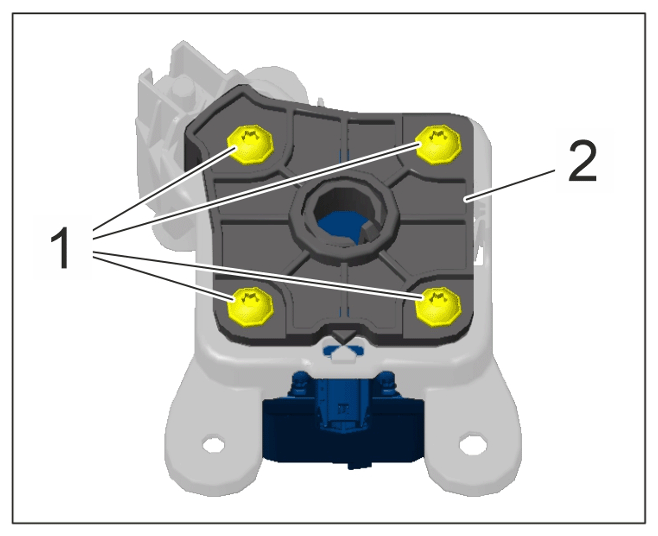

Unscrew screws securing camera for night vision system -1- to the turn plate -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for turn plate
Remove camera for night vision system.
