Replacing Gateway Control Unit

Information

The terms "Ignition on" and "Starting engine" are re-defined for fully electric vehicles (battery electric vehicles - BEV).

Establishing operational readiness/Ignition on:

Prerequisites for establishing operational readiness: High-voltage battery is sufficiently charged remove vehicle charging cable from the vehicle charge port, put driver's key in the emergency start tray.

Establishing operational readiness automatically: Get into the vehicle and close the driver's door. The driver's key is recognized inside the vehicle. Operational readiness is established.

Establishing operational readiness manually: Press Start/Stop switch. The driver's key is recognized inside the vehicle. Operational readiness is established.

Establishing operational readiness/Starting engine:

Establish operational readiness and engage transmission range. The vehicle is now ready to drive and can be moved.

Ending operational readiness/Switching off ignition

Ending operational readiness automatically: Get out of the vehicle with the driver's key and close the driver door. The driver's key is no longer detected outside the vehicle. Operational readiness ends.

Ending operational readiness manually: Press Start/Stop switch until the instrument cluster is switched off.

Ending driving readiness/Stopping engine

Vehicle is stationary: Press the P  button on the instrument cluster. The vehicle is parked.

Information

If the Gateway  control unit is programmed, ensure a charging voltage of 14.0 - 14.2 V  at the Gateway control unit. Adjust the charger's voltage if necessary. When programming is complete, reset the charger's voltage.

Information

Ensure the consistency of a combination of hardware and software versions

After performing software updates, always make sure that the target software versions are also actually installed on the control units and that the system is therefore ensured.

This also applies in the case of hardware replacement.

See TI 9X00 Information on tie software system for various control units in the vehicle (112/21)

Information

The instructions in the Tester  take precedence, since the description may be different with later Tester releases.

The procedure described here has been structured in general terms. Different text or additional information may appear in the Tester  .

1. Connect Tester to the vehicle and start it. Establish operational readiness on the vehicle.
2. Place original remote control in emergency start tray.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

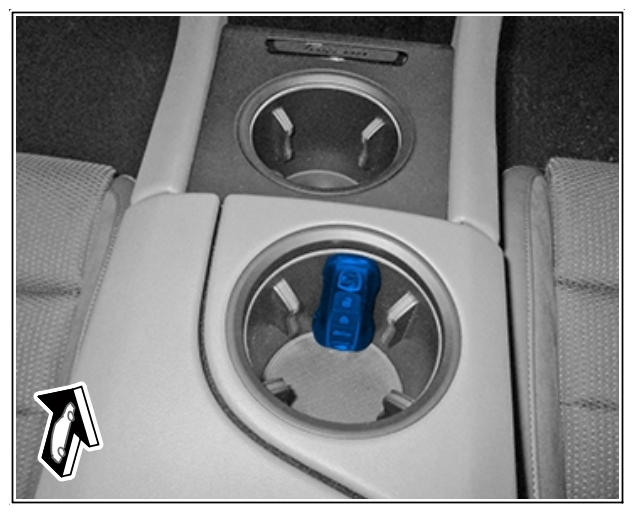

   Emergency start tray

3. Select the vehicle type if necessary.
4. Select the Gateway  control unit in the Overview  . Press F12 to continue. Create Vehicle Analysis Log (VAL)? Press F11 to continue.
5. Select Coding/programming  .
6. Select Automatic programming  . Press F12 to continue.
   1. 6.1  Tester displays message: Programming successful.
7. Return to the Overview  menu.
8. In the Overview  , press F7 to switch to the Additional menu  .
9. Select Commission component protection  .
   1. 9.1  Read and follow the information and instructions on the Tester.
   2. 9.2  Teach component protection in accordance with menu guidance.
   3. 9.3  Tester displays message: Component protection taught.
10. Select Enabling functions  .
    1. 10.1  Select Update functions  . Press F12 to continue.
    2. 10.2  Follow the instructions and notes on the Tester.
    3. 10.3  Enable in accordance with menu guidance.
11. Return to the Overview  menu.
12. Select the Gateway  control unit in the Overview  . Press F12 to continue.
13. Select Maintenance/repairs  .
14. Select Reset range calculation  . Press F12 to continue.
    1. 14.1  Follow the instructions and notes on the Tester.
    2. 14.2  Perform reset according to menu support.
15. Battery replacement  mist be selected. Press F12 to continue.
    1. 15.1  Follow the instructions and notes on the Tester.
    2. 15.2  Teach battery according to menu guidance.
16. Teach combination sensor.
    1. 16.1  Select the Airbag  control unit in the Overview. Press F12 to continue.
    2. 16.2  Select Maintenance/repairs  .
    3. 16.3 Calibrate combination sensor  must be selected. Press F12 to continue.
    4. 16.4  Follow the instructions and notes on the Tester.

    Vehicles with emergency call function: continue with Step 17.

    Vehicles without emergency call function: continue with Step  21.

17. Check whether emergency call button LED lights up in the roof console.
    1. 17.1  Emergency call button LED lights up green: Continue with Step  21.
    2. 17.2  Emergency call button LED lights up red: Continue with Step 18.
18. Select the Connect  control unit in the Overview  . Press F12 to continue.
19. Select Drive links checks  .
20. Connection set-up  must be selected. Press F12 to continue.
    1. 20.1  Follow the instructions and notes on the Tester.
    2. 20.2  Establish connection according to menu guidance.
    3. 20.3  Emergency call button LED lights up green.
    4. 20.4  If the connection setup fails (emergency call button LED remains red): Create a ticket in the PCSS.
21. Go back to the Overview  .
22. In the Overview  , press F7 to switch to the Additional menu  .
23. Read out all fault memories  , process and delete existing faults if necessary.
24. Exit the diagnostic application. End operational readiness on the vehicle. Disconnect Tester from the vehicle.
