Technical Values

Location	Description	Type	Basic value
Screws securing the top of the central computer holder to the dashboard bracket	Item 2	Tightening torque	3 Nm (2.2 ftlb.)

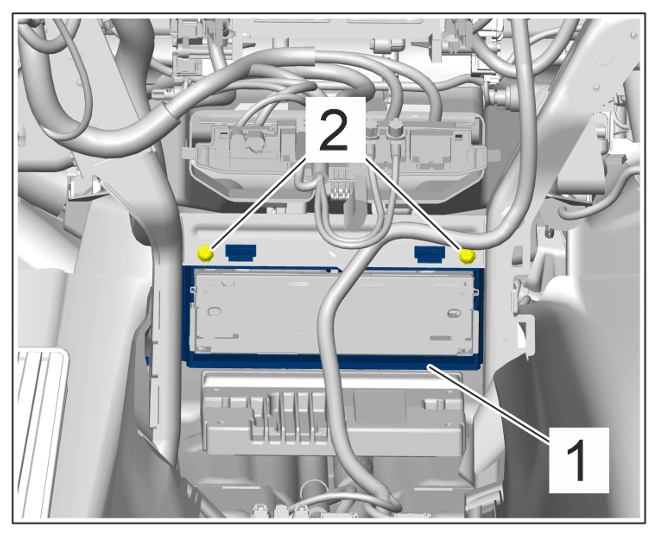

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for central computer
Screws securing the side of the central computer holder to the dashboard bracket	Item 2	Tightening torque	3 Nm (2.2 ftlb.)

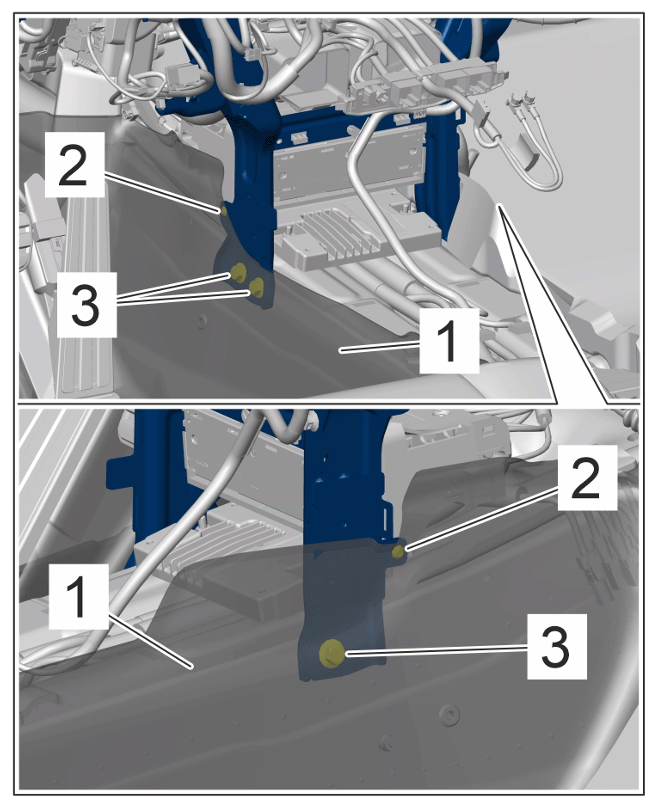

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Side screws
Nuts securing gateway control unit to body	Item 2	Tightening torque	4 Nm (3 ftlb.)

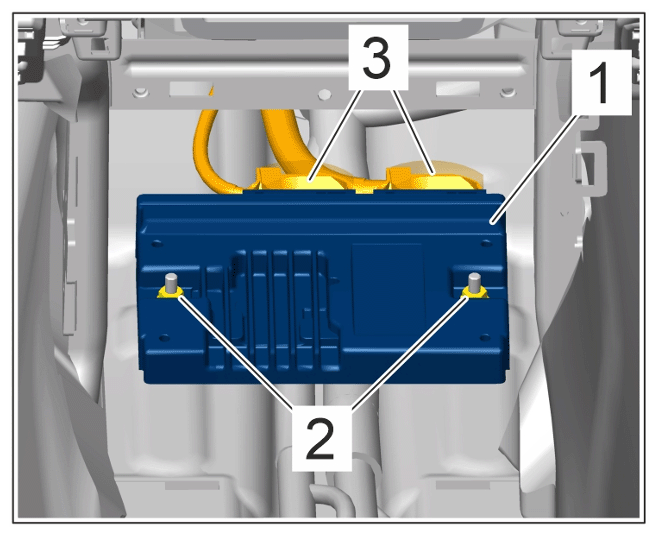

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gateway control unit
