Subsequent Work

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

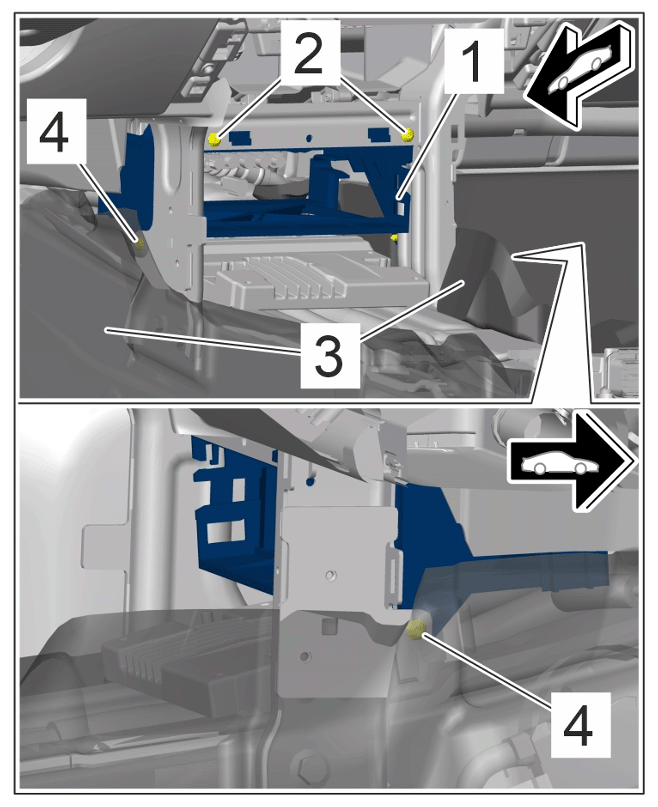

Holder for central computer

1. 1.1  Engage holder for central computer -1-  .
2. 1.2  Screw in screws at the sides -4-  and tighten to > Tightening torque 3 Nm (2.2 ftlb.)  .
3. 1.3  Screw in screws at the front -2-  and tighten to > Tightening torque 3 Nm (2.2 ftlb.)  .

> 915219 REMOVING AND INSTALLING CENTRAL COMPUTER - INFORMATION ON "INSTALLING"
