Preliminary Work

> 915219 REMOVING AND INSTALLING CENTRAL COMPUTER - INFORMATION ON "REMOVING"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

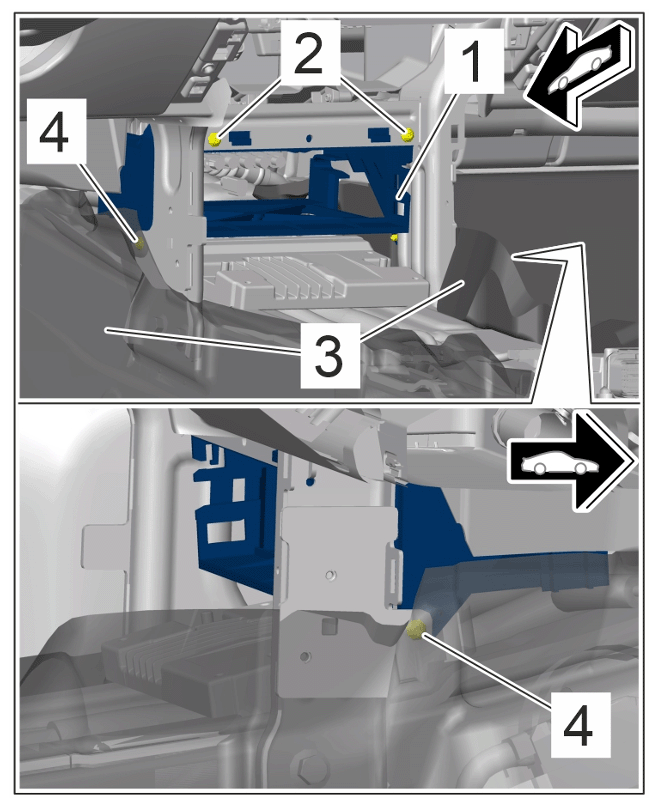

Holder for central computer

1. 2.1  Unscrew centre screws -2-  .
2. 2.2  Loosen carpet -3-  until the screws at the sides -4-  are accessible.
3. 2.3  Unscrew screws at the sides -4-  .
4. 2.4  Disengage holder for central computer -1-  and remove it.
