Installing Steering Column Switch

Information

The springs of the steering column must engage in the groove on the steering-column switch.

1. Install steering-column switch -1-  .
   1. 1.1  Position steering-column switch -1-  .
   2. 1.2  Fit and tighten screw -3-  .

      > Tightening torque 6 Nm (4.5 ftlb.)

   3. 1.3  Connect and lock electric plug connection -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

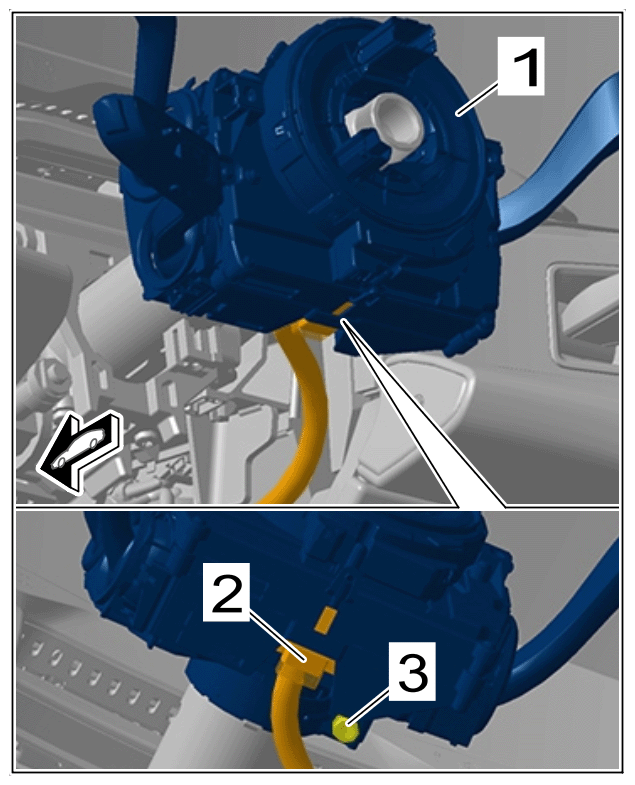

      Steering-column switch
