Removing Led Light Bulb (Matrix Module)

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• The electrical pins or plug contacts must not be touched.

Information

Only touch the lamp (Matrix module) with clean cotton gloves.

Only touch the lamp (Matrix module) on the cooler housing. Do not touch the lens.

The lens must be clean and free of grease.

Do not clean the lens with a cleaning agent.

Information

• Only work on removed headlights in a clean work area and on a soft surface.

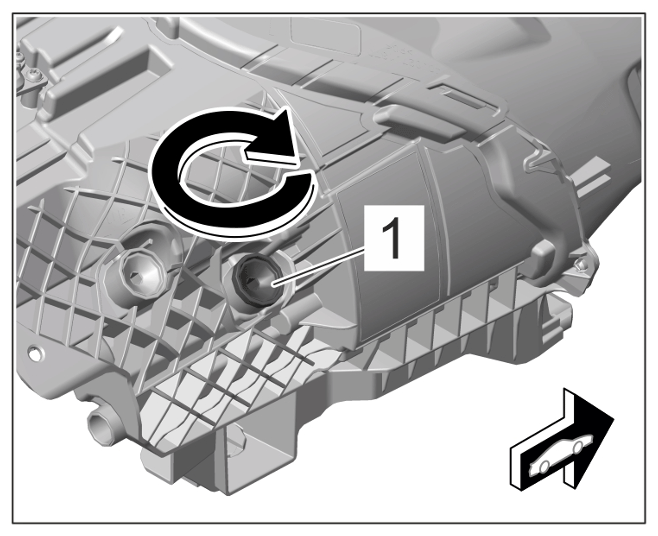

1. Adjust headlight vertical setting -1-  downwards -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Headlight vertical setting

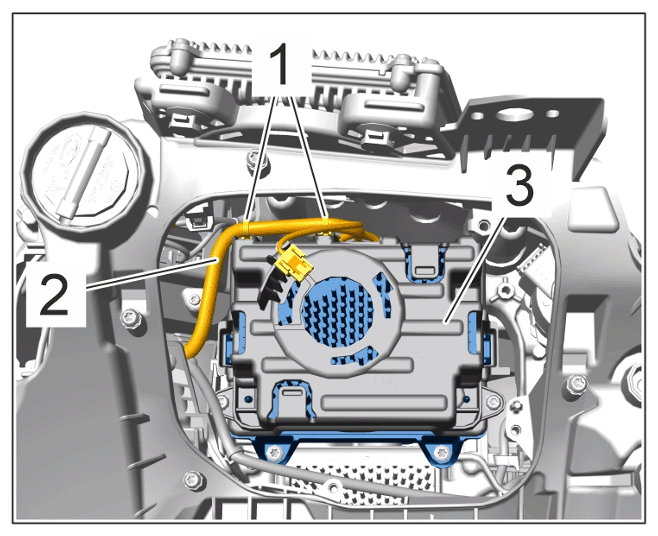

2. Unclip clips -1-  and guide electric wire harness -2-  out of the fan holder -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wiring harness

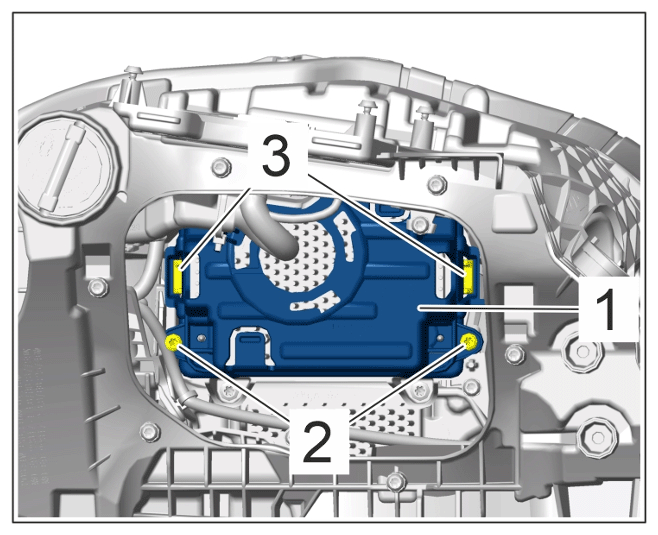

3. Unscrew the screws -2-  and unclip the fan holder -1-  from the retaining lugs -3-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fan holder

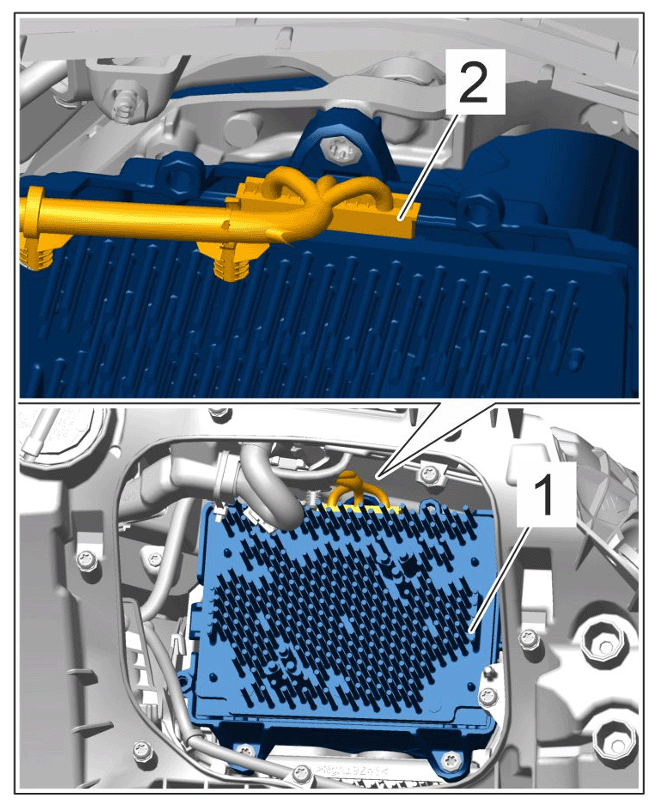

4. Release and disconnect electrical connector -2-  from the LED light bulb (Matrix module) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electrical connector

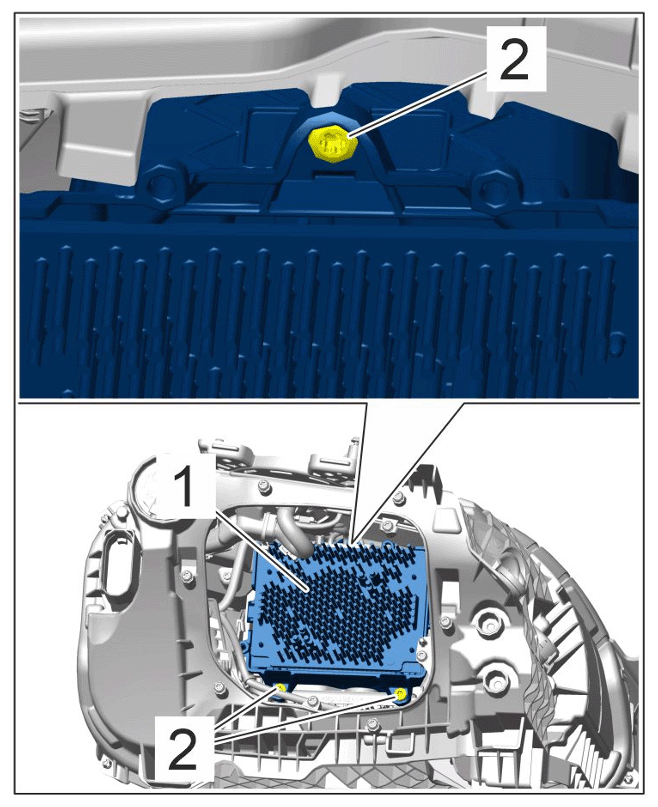

5. Unscrew the screws -2-  and guide the LED light bulb (Matrix module) -1-  out of the headlight.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws
