Valve Drive

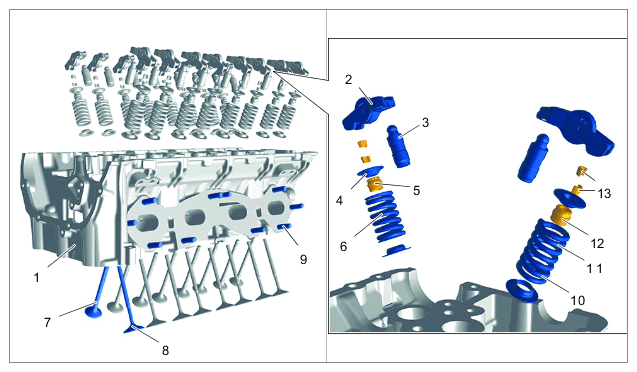

Fig 1: Valve Drive Components Location - V8 Turbo
G15824175Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Valve drive - V8 Turbo

1  Cylinder head
2  Rocker arm
3  Tappet
4  Valve-spring plate, top
5  Valve-stem seal
6  Valve spring, intake
7  Intake valve
8  Outlet valve
9  Stud
10  Valve-spring plate, bottom
11  Valve spring, outlet
12  Valve-stem seal
13  Valve collet
