Installing Bellows For Steering-Gear Housing

Information

During fitting, make sure that the steering-gear housing bellows is not twisted and that the clamp lugs are easy to reach.

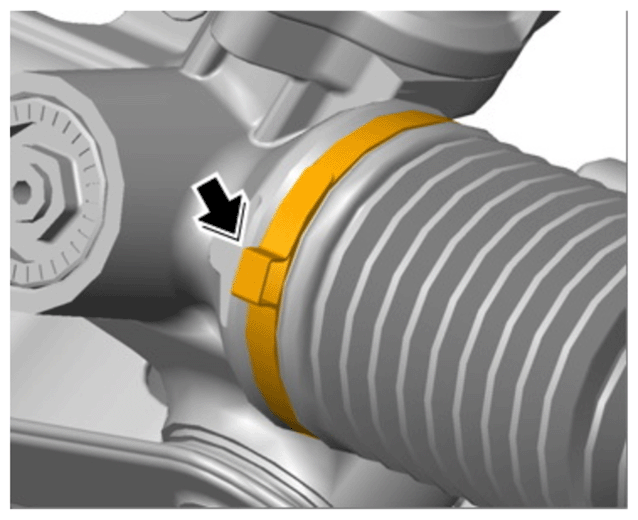

1. Fit inner clamp using > V.A.G 1275A - Hose clip pliers.  > Inner clamp

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner clamp

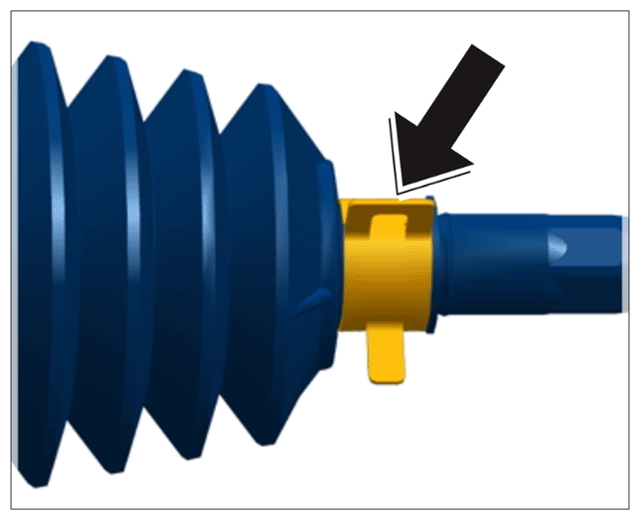

2. Fit outer clamp -arrow-  using > VAS 6890 - Spring Band Clamp Pliers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Outer clamp
