Removing Steering Column

WARNING: This page is about a different variant/trim than selected.

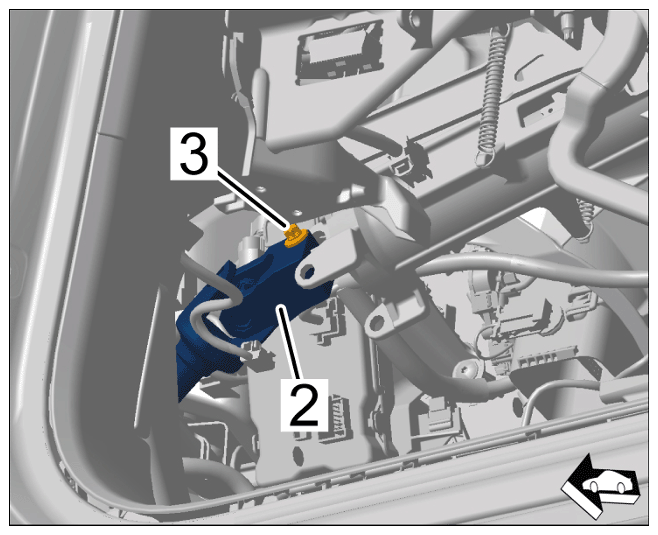

Loosen universal joint -2-.
1. 1.1 Unscrew and remove screw -3- .
2. 1.2 Pull universal joint -2- off the steering column.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw
Only for vehicles with electric steering column adjustment (ELV) (I-no. 2C4):
Release and disconnect electric plug connection on control unit for electric steering column adjustment.

> WM, 483019 REMOVING AND INSTALLING CONTROL UNIT FOR STEERING COLUMN ADJUSTMENT

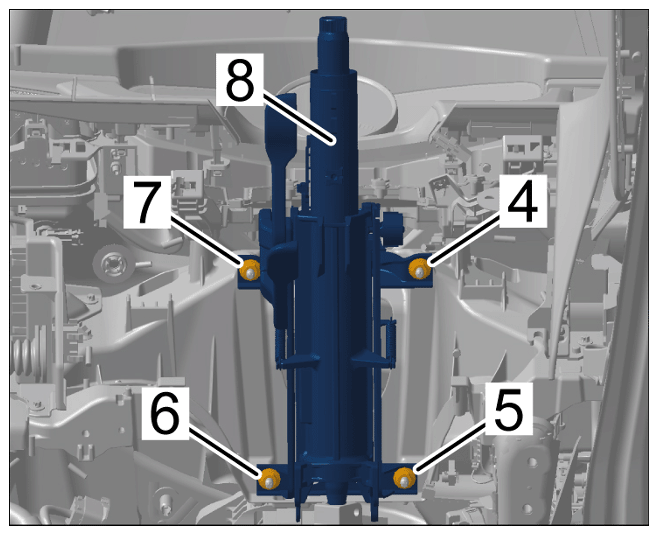

Unscrew nuts -4 to 7-.

Fig 1: Steering Column Nuts Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nuts
Lower the steering column -8- as far as required until the electric plug connection is accessible.

Fig 2: Steering Column Nuts Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lowering steering column

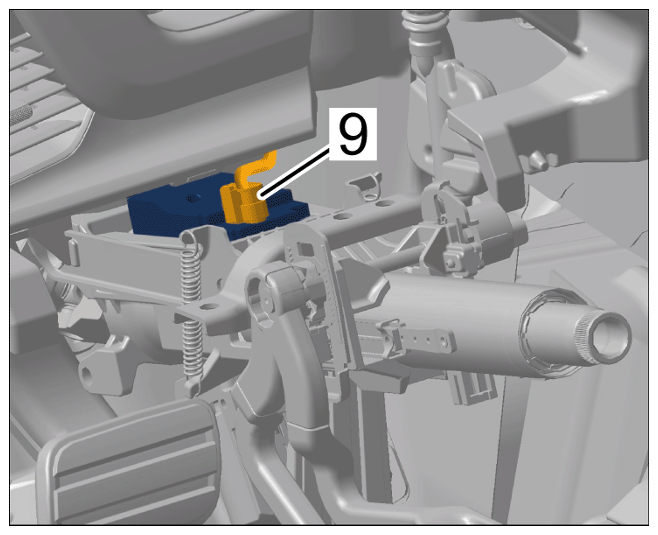

Release and disconnect electric plug connection -9- on ELV control unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection
Remove steering column.
