Installing Steering Wheel

Information

• Turn wheels to straight-ahead position and observe the marking you applied earlier!
• Airbag unit must lock with an audible click! Pull to check that the airbag unit is fitted securely!
• Always replace screw!

1. Installation is performed in reverse order. Pay particular attention to the following:

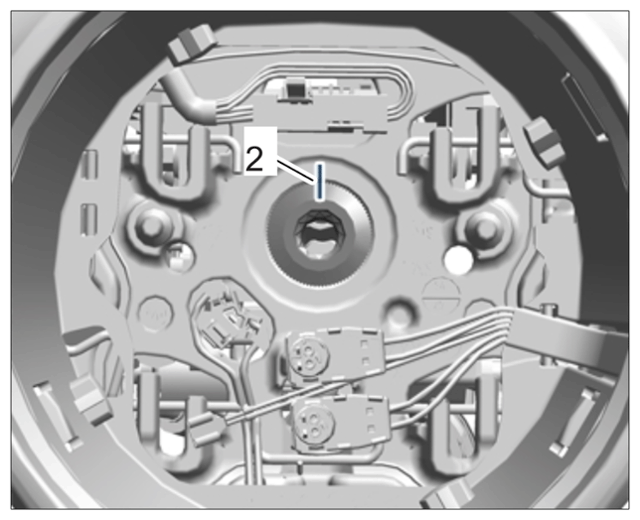

   1. 1.1 Install steering wheel in accordance with the marking -2-  applied between the steering wheel and steering column.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fitting according to applied marking

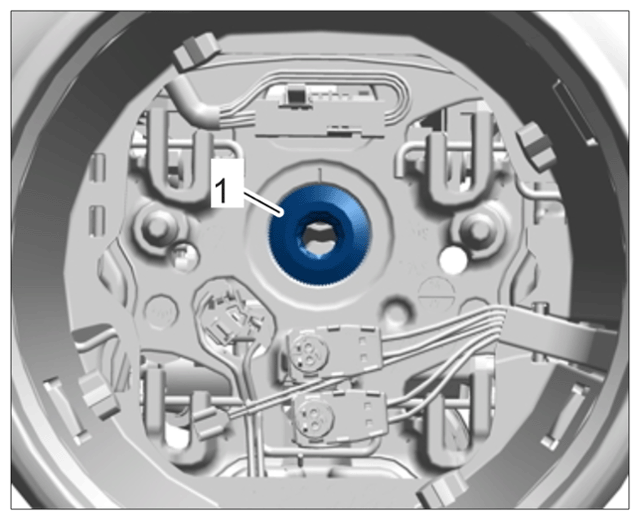

   2. 1.2 Screw in and tighten new screw -1-  .

      > Initial tightening 30 (22m) Nm

      > Final tightening torque angle + 90°

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screwing in screw

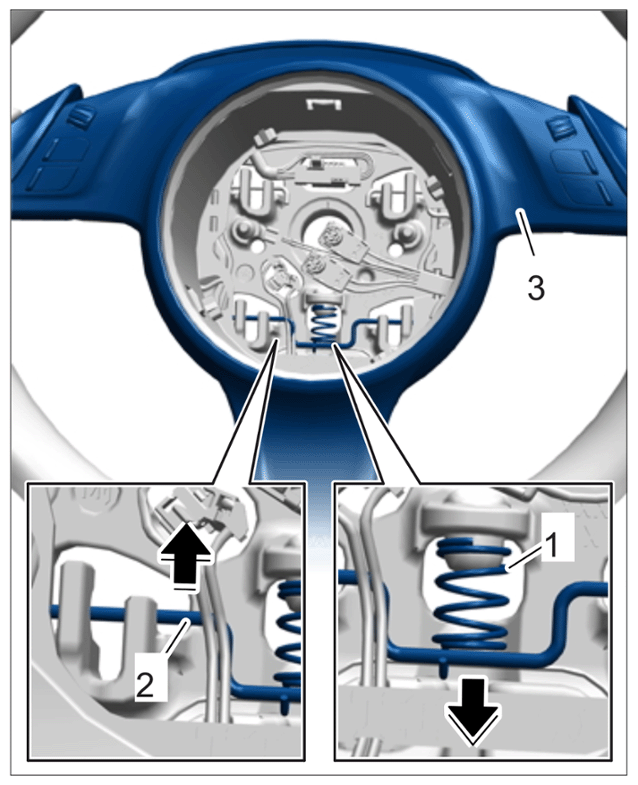

   3. 1.3 Check airbag unit before installation  :
      • Check correct positioning of the compression spring -1-  (seating of the compression spring -1-  in spring guide!).
      • Slide securing clip -2-  up evenly, let it go and check that the securing clip -2-  moves down evenly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Checking that steering wheel is secure
