Removing Catalytic Converter

Information

• Treat corroded components with anti-rust agent or heat.

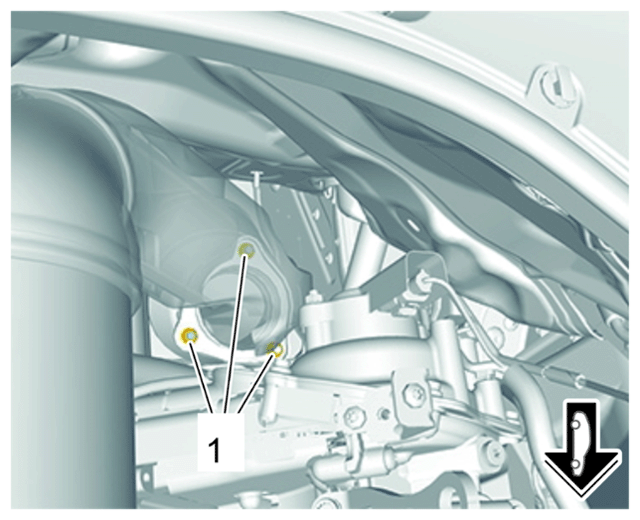

1. Unscrew nuts -1-  on primary catalytic converter/catalytic converter flange.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Primary catalytic converter/catalytic converter flange

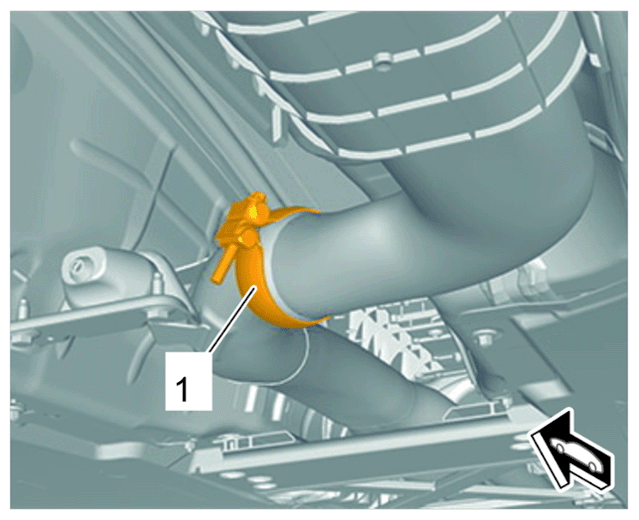

2. Loosen ball clamp -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ball clamp

3. Remove catalytic converter.

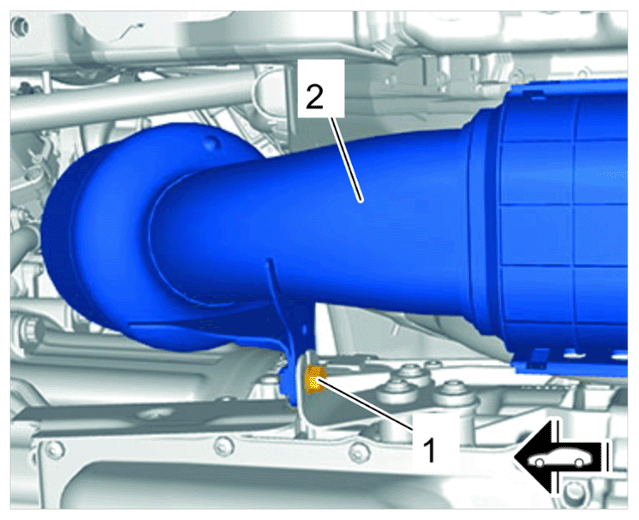

   1. 3.1 Loosen screw -1-  on the holder and guide catalytic converter -2-  out of the holder.
   2. 3.2 Remove catalytic converter -2-  in a downward direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter
