Removing Tailpipe Covers
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

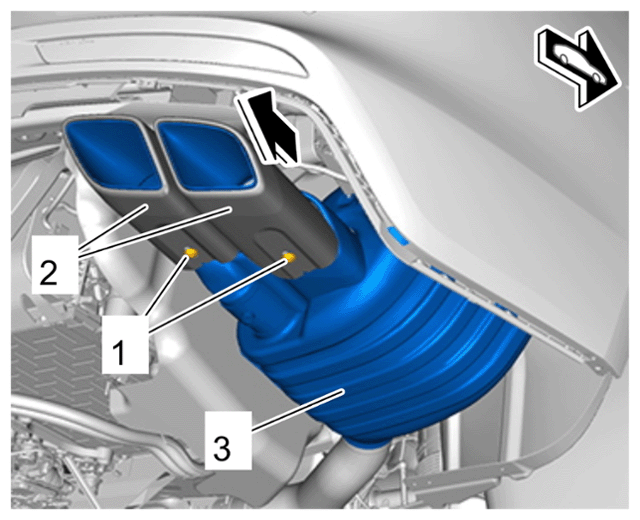

- Mark installation position of tailpipe covers -2- .
- Unscrew screws -1- and pull tailpipe covers -2- off the rear silencer -3- (-arrow- ).
Tailpipe covers
