Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Ball clamp securing exhaust system to exhaust pipe | Tightening torque | 35 Nm (26 ftlb.) | |||
| Fastening screws securing exhaust system to body | M8 | Tightening torque | 23 Nm (17 ftlb.) | ||
| Exhaust clamp | Replace rear silencer | Tightening torque | 33 Nm (24 ftlb.) | ||

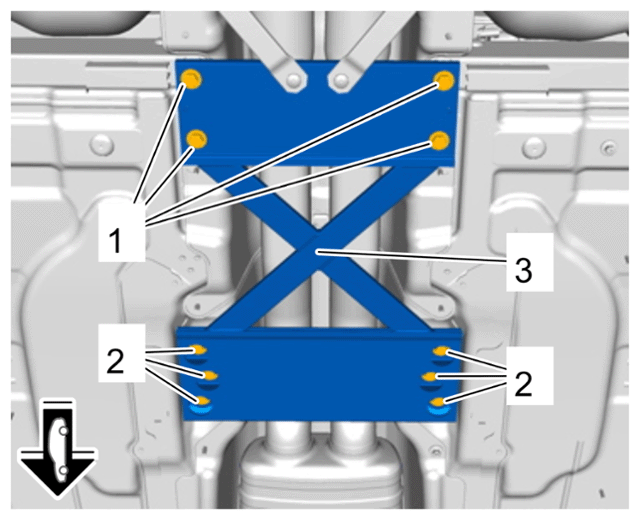

| Screws for reinforcement strut on tunnel bridge | Items 1 and 2 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Screws for reinforcement strut on tunnel bridge |
