Checking Belt Strap

Information

Avoid direct sunshine when drying.

1. 3.1 Damage type 1

   If > Damage type 1  or > Damage type 2  is found on a vehicle involved in an accident, replace seat belt and seat-belt buckle.

   > 691119 REMOVING AND INSTALLING FRONT THREE-POINT BELT

   > 691219 REMOVING AND INSTALLING REAR THREE-POINT BELT

   > 692419 REMOVING AND INSTALLING FRONT BELT LOCK

   > 692519 REMOVING AND INSTALLING REAR BELT LOCK

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

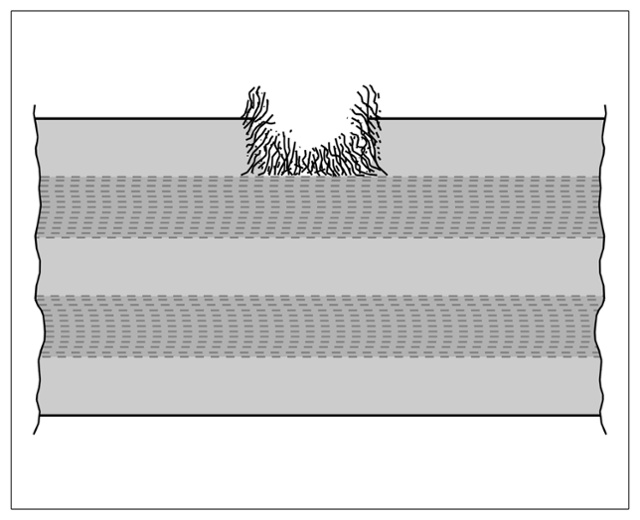

   Damage type 1

2. 3.2 Damage type 2

   If > Damage type 1  , > Damage type 2  or > Damage type 3  is found on a vehicle that was not involved in an accident, replace damaged seat belt.

   > 691119 REMOVING AND INSTALLING FRONT THREE-POINT BELT

   > 691219 REMOVING AND INSTALLING REAR THREE-POINT BELT

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

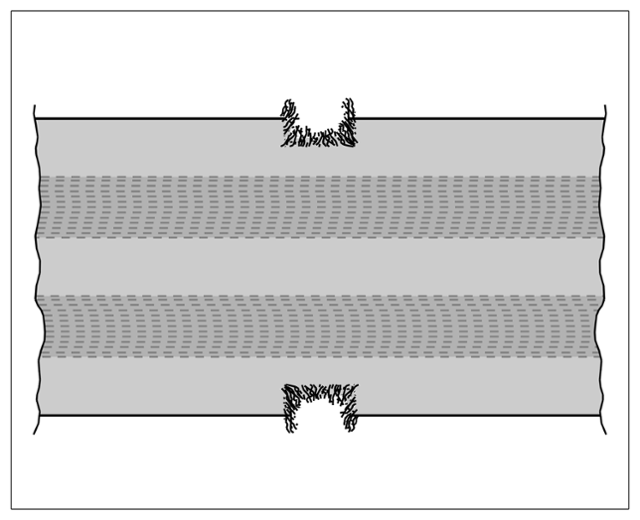

   Damage type 2

3. 3.3 Damage type 3

   Burn marks from cigarettes for example > Damage type 3  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

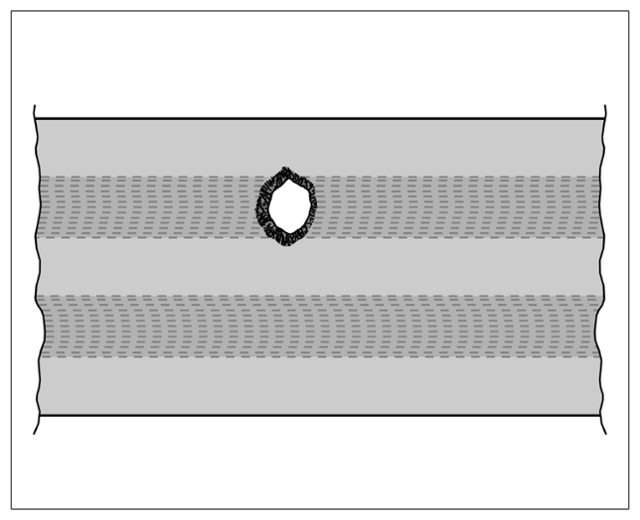

   Damage type 3

4. 3.4 Damage type 4

   Replace seat-belt pretensioner if it was deployed.

   > Damage type 4

   > 691119 REMOVING AND INSTALLING FRONT THREE-POINT BELT

   > 691219 REMOVING AND INSTALLING REAR THREE-POINT BELT

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

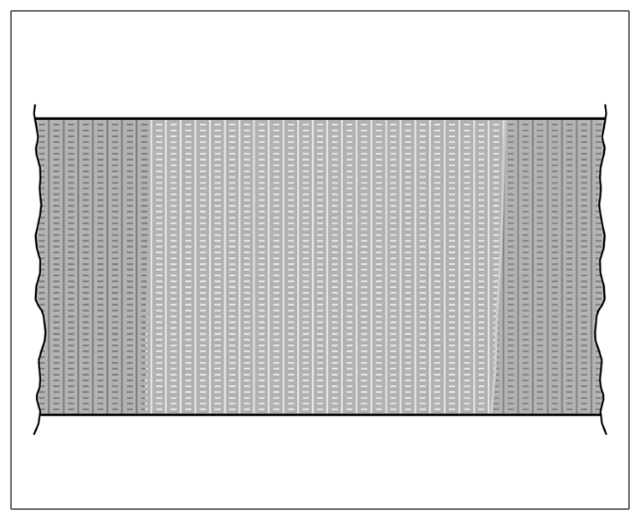

   Damage type 4
