Remove Three-Point Belt, Rear

WARNING: This page is about a different variant/trim than selected.
WARNING: Incorrect handling of seat-belt pretensioner unit
  • Triggering of seat-belt pretensioner unit

    → Observe safety regulations for handling seat-belt pretensioner units.

    > 6X00IN HANDLING AND REPLACING AIRBAG AND SEAT-BELT PRETENSIONER UNITS

    → Observe disposal regulations for seat-belt pretensioner units.

    > 6X00IN DISPOSAL OF AIRBAG AND SEAT-BELT PRETENSIONER UNITS

    → After disconnecting the battery, wait 1 minute before disconnecting the seat-belt pretensioner unit.

    → Remove ignition key and disconnect the battery. Route or insulate the ground strap so that all contact with a ground carrier is avoided.

    > 2706IN00 Work instructions after disconnecting the battery

    → If removed for an extended period, the seat-belt pretensioner unit must be stored in a safe place.

    → Transport the seat-belt pretensioner unit in such a way that the seat belt can retract safely if it is actuated.

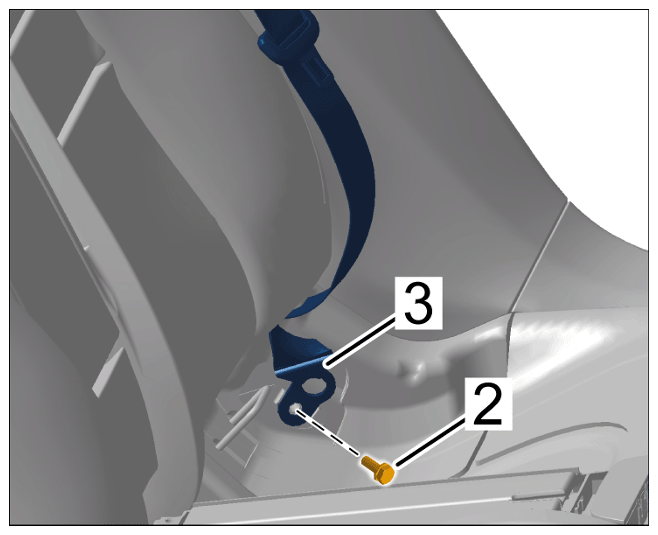

  1. Unscrew screw -2-  and guide seat belt mount -3-  out of the belt guide trim at the D-pillar.
    G15866502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat belt mount

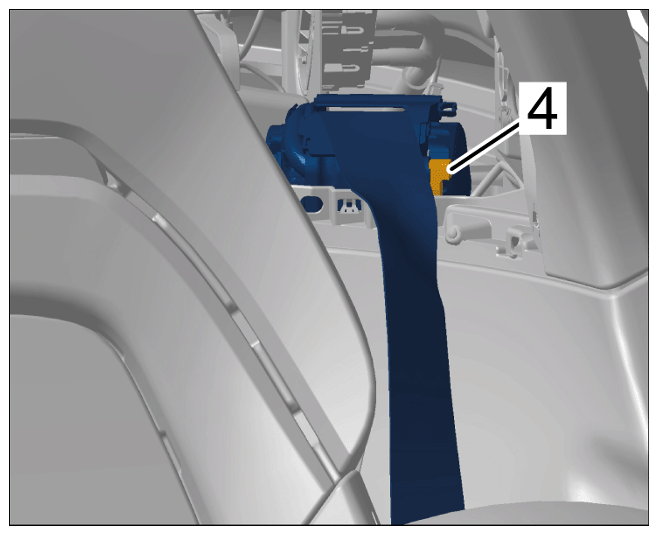

  2. Release electric plug connection -4-  and disconnect it.
    G15866503Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

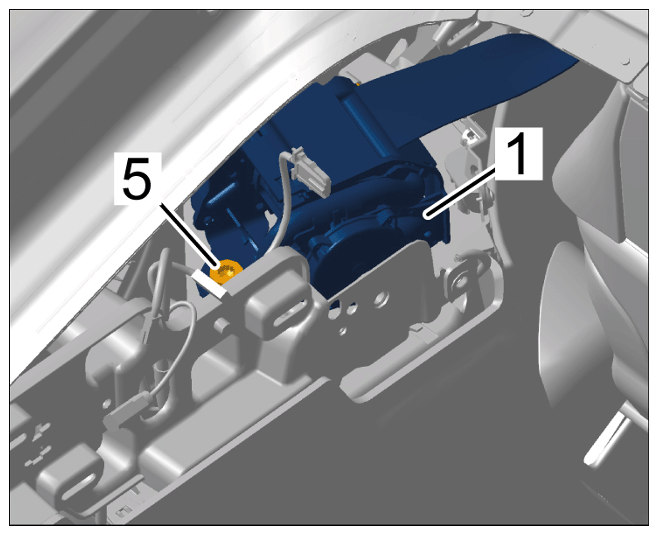

  3. Unscrew screw -5-  and remove belt reel -1-  .
G15866504Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt reel
