Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...

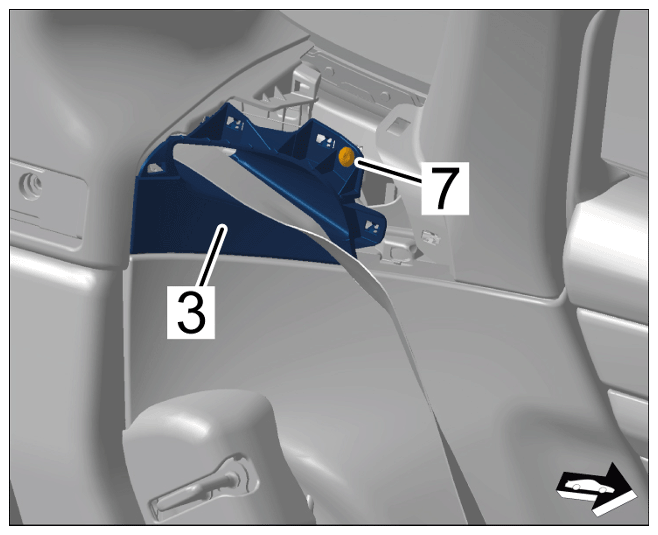

Screw for belt guide trim on Cpillar	Item 7	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for belt guide trim on C-pillar

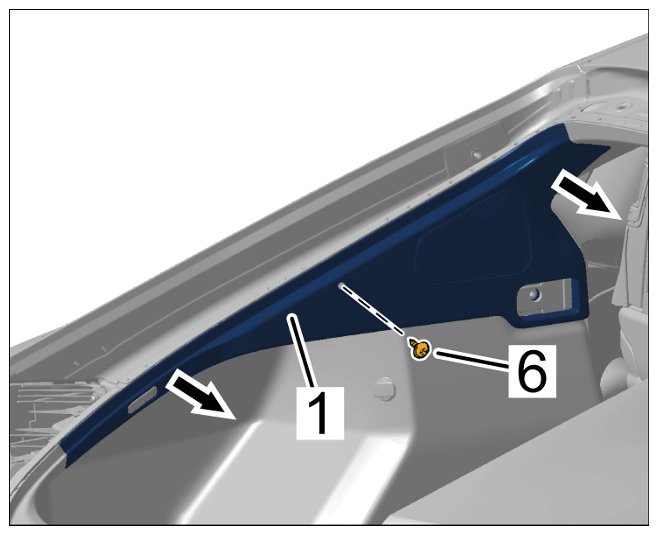

Screws for D-pillar trim panel	Items 2 and 6	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for D-pillar trim panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for D-pillar trim panel

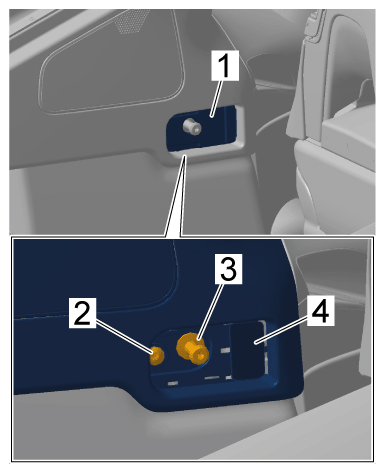

Bolts on D-pillar trim panel	Item 3	Tightening torque	12.5 Nm (9.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for D-pillar trim panel
