Removing C-Pillar Trim Panel (Upper Part)

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

1. Fold rear backrest forward.

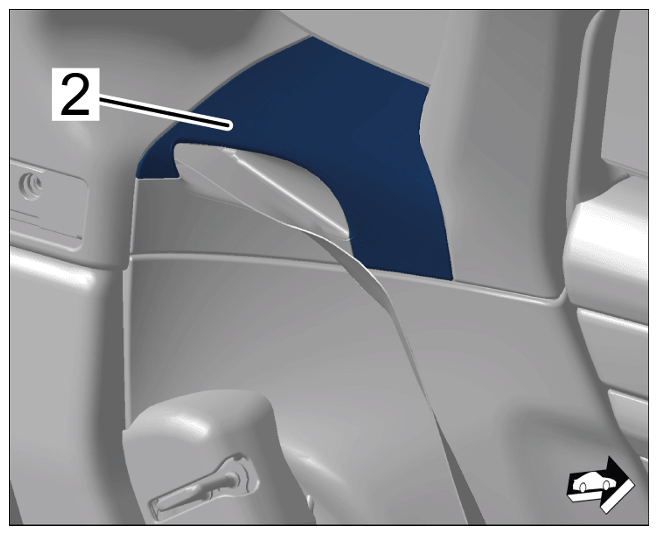

2. Unclip upper cover -2-  on belt guide.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping cover

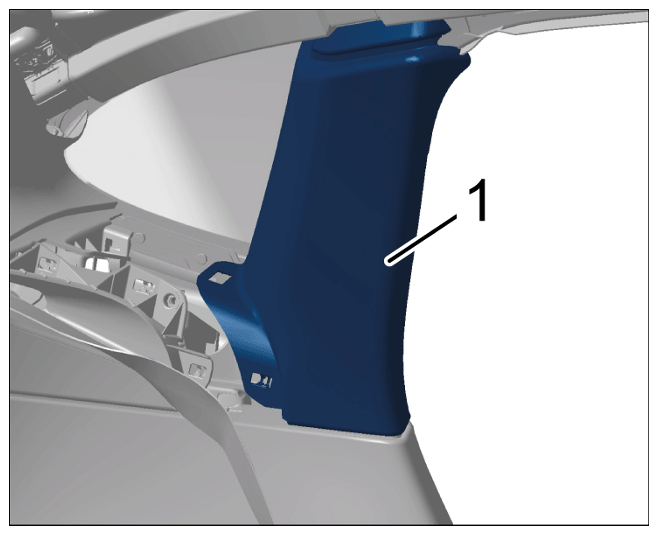

3. Unclip C-pillar trim panel (upper part) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping C-pillar trim panel (upper part)
