Removing (Lower Part Of) C-Pillar Trim Panel

WARNING: This page is about a different variant/trim than selected.

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

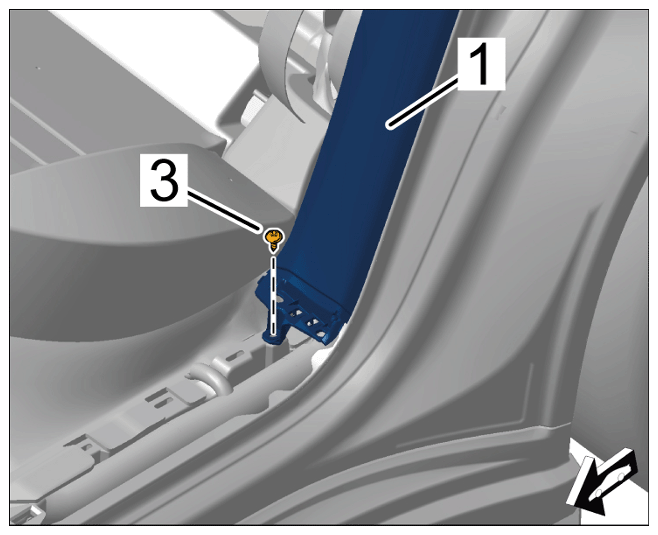

  1. Unscrew screw -3-  on (lower part of) C-pillar trim panel -1-  .
    G15874373Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screw

  2. Unscrew screw -4-  on (lower part of) C-pillar trim panel -1-  .
    G15874374Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screw

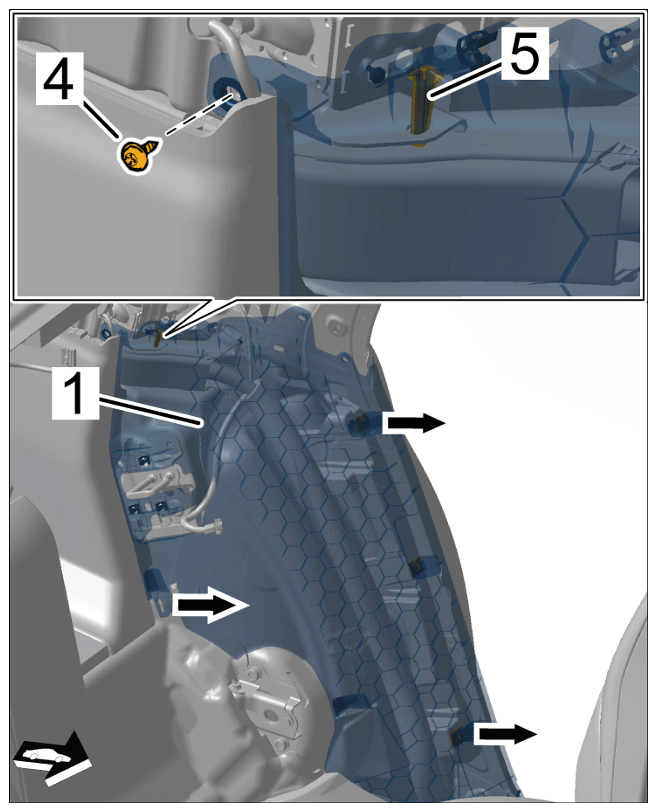

  3. Unclip (lower part of) C-pillar trim panel -1-  at the sides -arrows-  , disengage guide -5-  at the top and remove (lower part of) C-pillar trim panel -1-  .
    G15874375Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing (lower part of) C-pillar trim panel
