Removing Dashboard Moulding On Driver's Side

WARNING: This page is about a different variant/trim than selected.

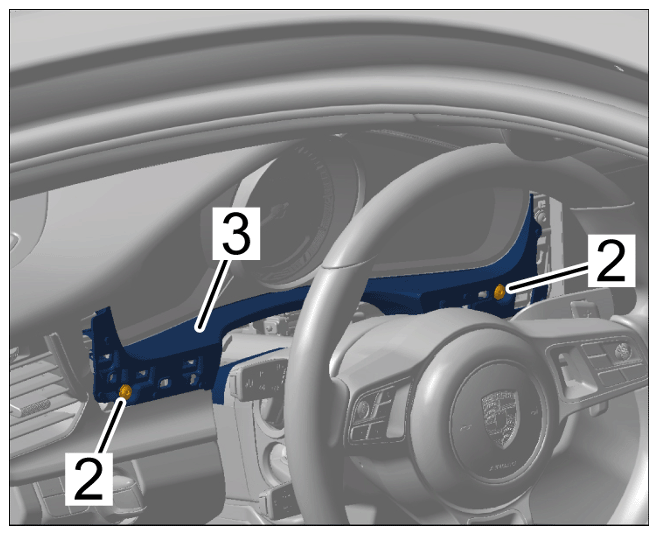

  1. Unscrew screws -2-  , unclip trim panel -3-  and set it aside.
    G15874336Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening trim panel

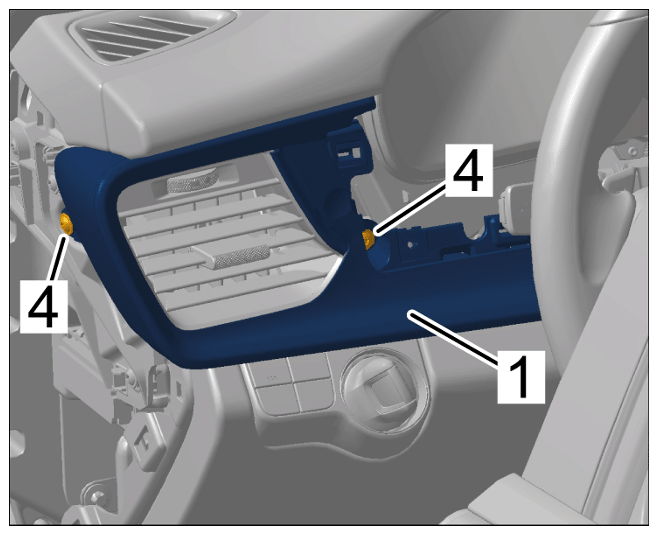

  2. Unscrew screws -4-  and unclip moulding -1-  .
    G15874337Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Detaching moulding

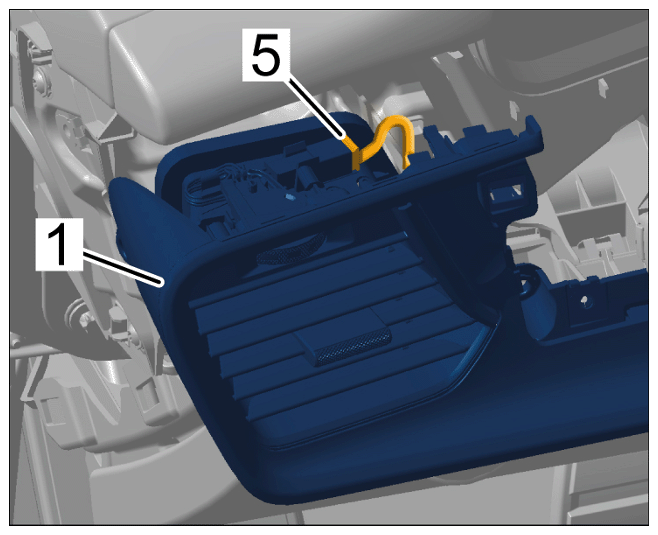

  3. Release and disconnect electric plug connection -5-  and remove moulding -1-  .
    G15874338Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing moulding
