Removing Carpet

Information

• Shown on driver's side; the steps are identical for the passenger's side.

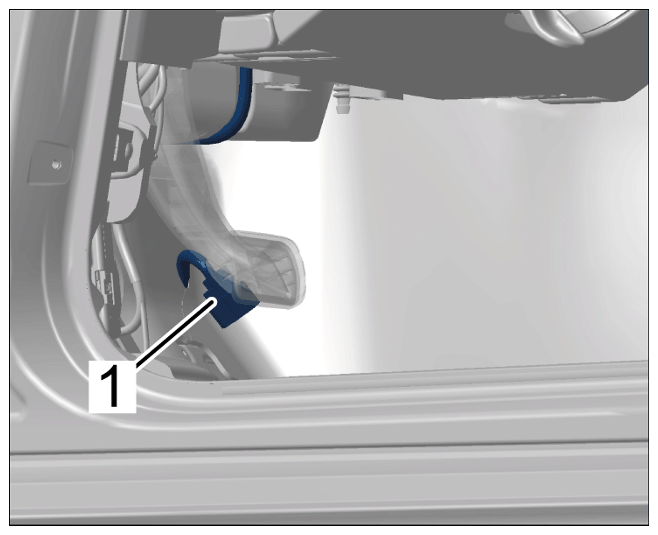

1. Feed electric line for accelerator pedal module -1-  through the slit in the carpet.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Feeding electric line through

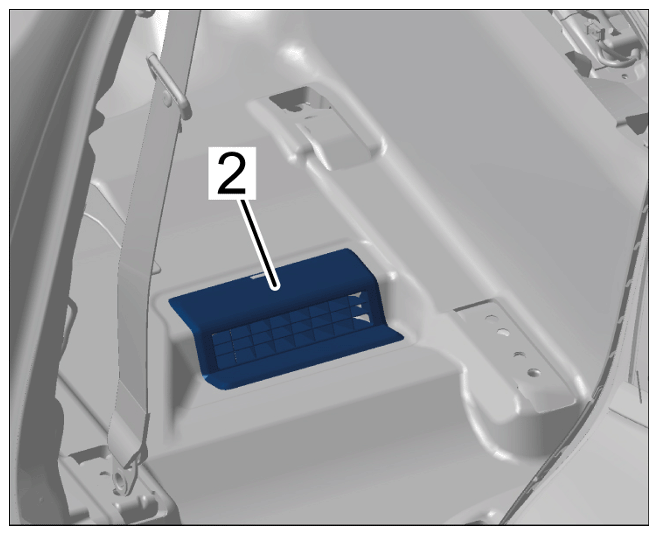

2. Unclip air guide at the rear -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing air guide

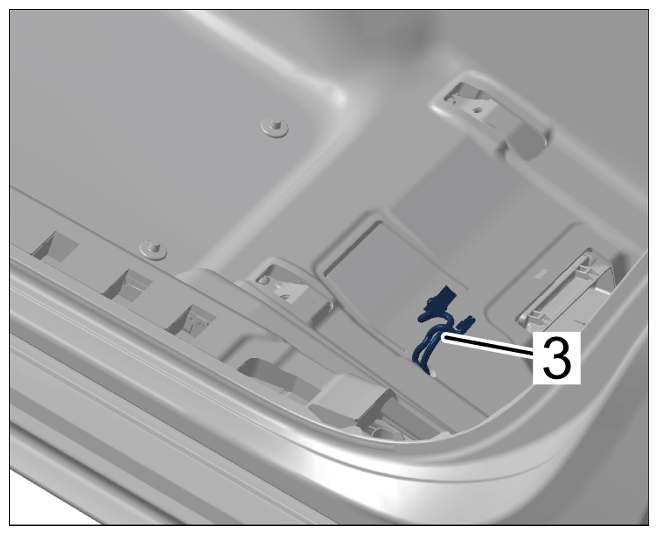

3. Feed electric wire harness for front seat -3-  through the slit in the carpet.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Feeding electric wire harness through

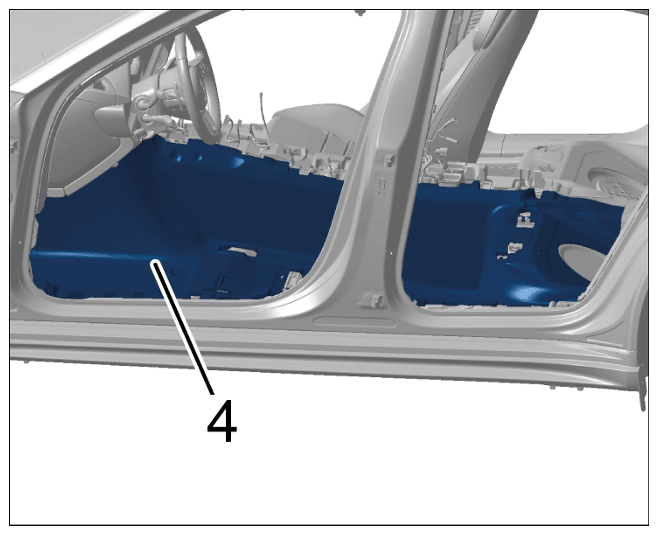

   Remove carpet -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing carpet
