Removing Trim Panel Under Dashboard

WARNING: This page is about a different variant/trim than selected.

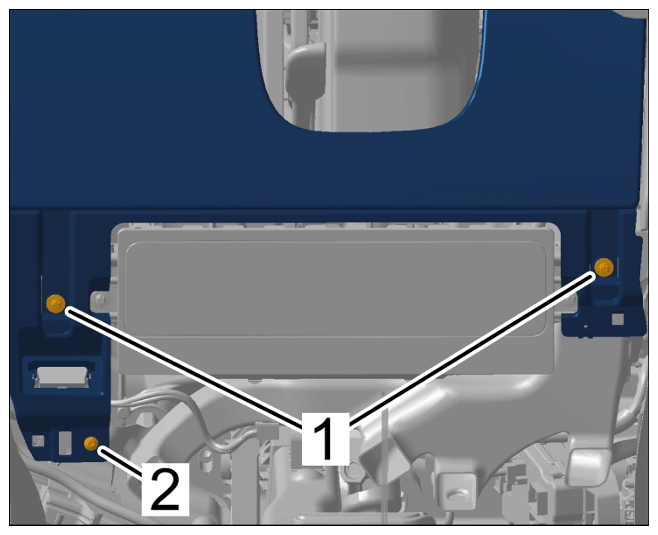

Unscrew screws -1 and 2- at the bottom.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing lower screws

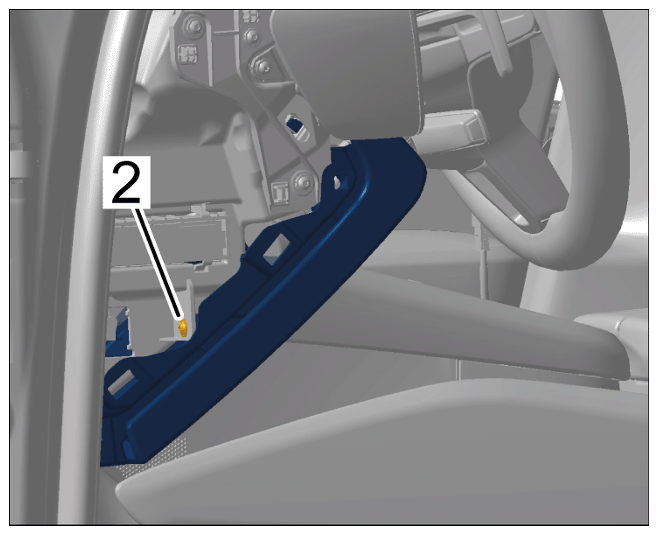

Unscrew screw -2- at the side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw at the side

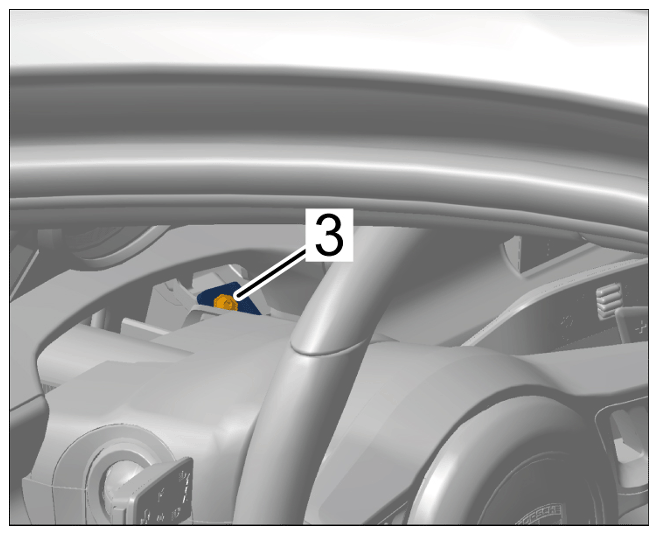

Unscrew screw -3- between steering column and decorative element at the top.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening trim panel under dashboard
Unclip and pull out trim panel under dashboard until the electric plug connections are accessible.
Release and disconnect electric plug connections.
