Removing Dashboard Trim Panels (On Driver's Side)

WARNING: This page is about a different variant/trim than selected.

Information

Too much force can damage the component.

  1. Unclip left dashboard trim panel (on driver's side) -1-  .

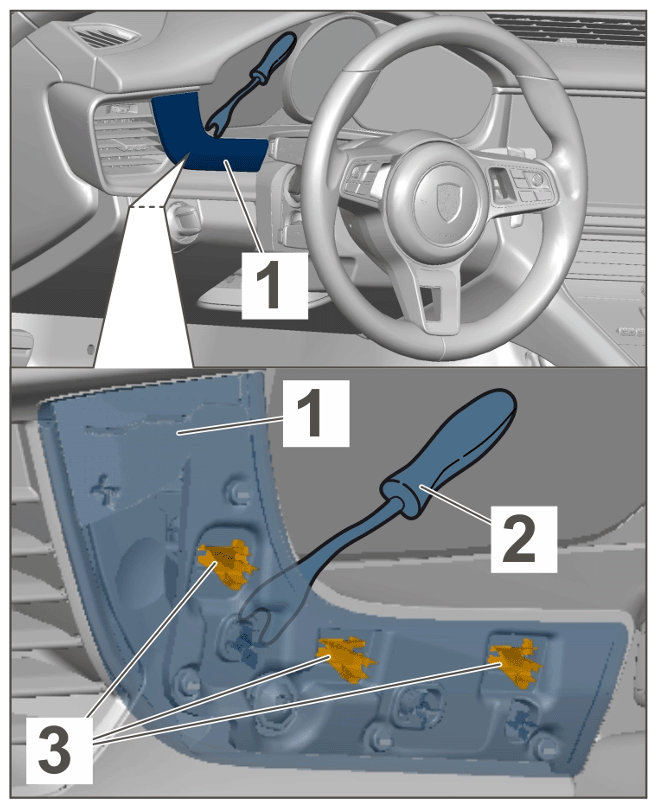

    G15874276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left dashboard trim panel (on driver's side)

    1. 1.1 Carefully push in > VAS 6933 - Disassembly tool  or > VAS 6845 - Scraper/spatula/lever set No. 3 or No. 5 -2-  in the radius between clips -3-  .
    2. 1.2 Carefully lever off left dashboard trim panel (on driver's side) -1-  .
  2. Unclip right dashboard trim panel (on driver's side) -1-  .

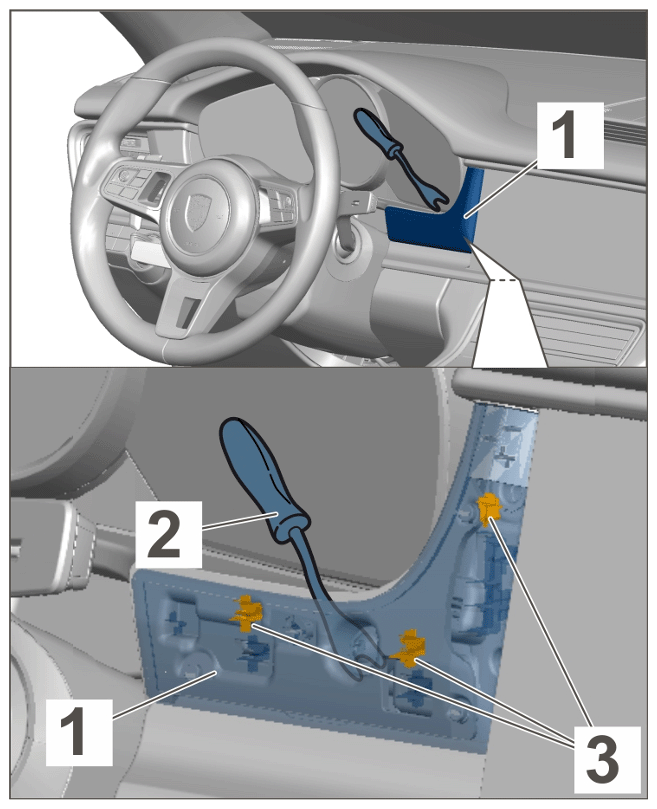

    G15874277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Right dashboard trim panel (on driver's side)

    1. 2.1 Carefully push in > VAS 6933 - Disassembly tool  or > VAS 6845 - Scraper/spatula/lever set No. 3 or No. 5 -2-  between clips -3-  .
    2. 2.2 Unclip right dashboard trim panel (on driver's side) -1-  .
