Removing (Side) Luggage Compartment Trim Panel (Luggage Compartment Cover)
WARNING: This page is about a different variant/trim than selected.
- Unscrew screws -2-
and remove lashing point -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

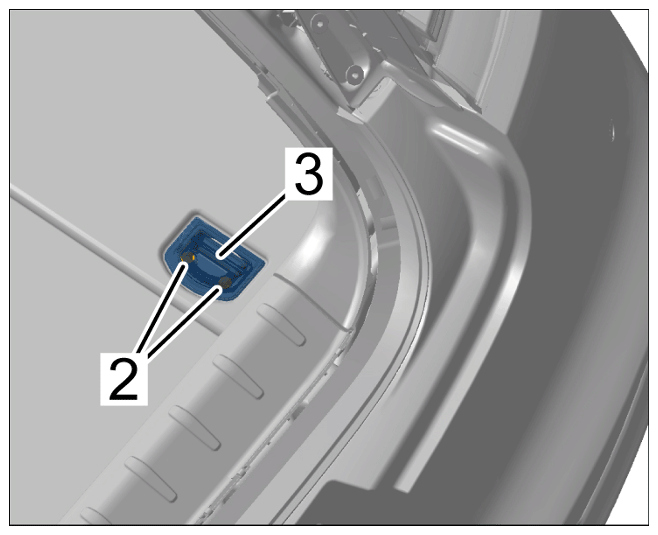

Removing lashing point
- Unclip (side) luggage compartment trim panel (luggage compartment cover) -1-
(-arrow-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

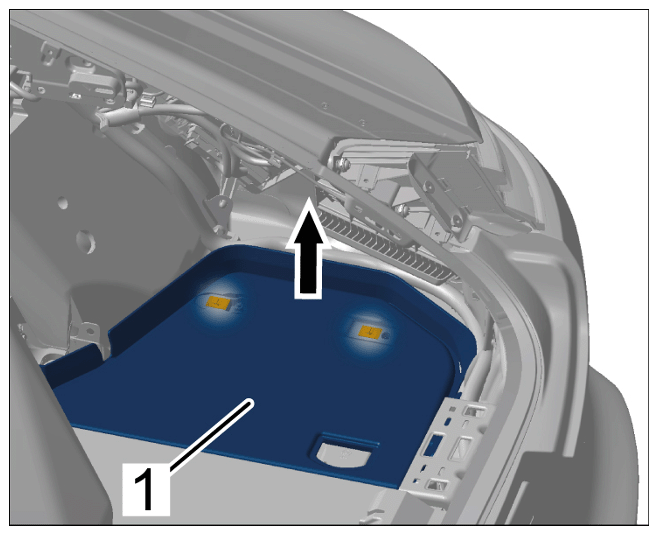

Removing (side) luggage compartment trim panel (luggage compartment cover)
