Removing Fuel Line (High-Pressure, Left)

Information

The rules relating to cleanliness and instructions for working on the fuel system must always be observed before and during the work.

> WM, 2X00IN RULES RELATING TO CLEANLINESS AND INSTRUCTIONS FOR WORKING ON THE FUEL SYSTEM

> WM, 2X00IN BASIC SAFETY INSTRUCTIONS FOR WORKING WITH THE FUEL SYSTEM

Information

Check fuel line for damage following removal and replace it if necessary.

1. Undo screws -1 and 2-  and remove coolant pipe -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

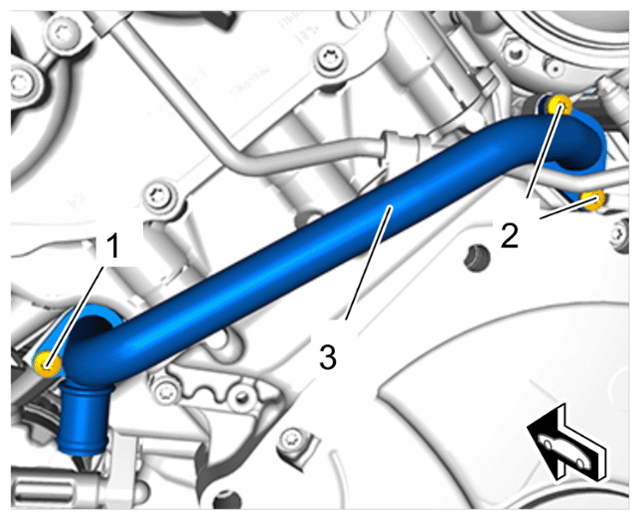

   Coolant pipe on left cylinder bank

2. Disconnect additional coolant pump coolant pipe -1-  .
   1. 2.1 Unscrew screw -2-  .
   2. 2.2 Unscrew screw -4-  .
   3. 2.3 Loosen spring band clamp -3-  using > VAS 6890 - Spring Band Clamp Pliers  .
   4. 2.4 Remove coolant pipe and put it to one side.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Additional coolant pump coolant pipe

3. Release and disconnect line connection -1-  and move brake booster vacuum line -2-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

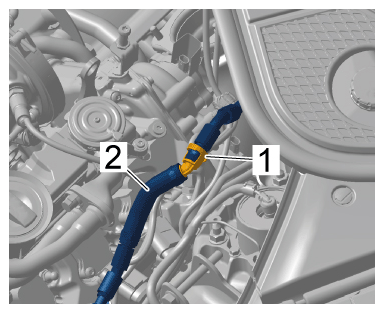

   Moving brake booster vacuum line aside

4. Press sound absorber aside and unscrew union nut -1-  on the left rail using > T40055 - socket-wrench insert  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

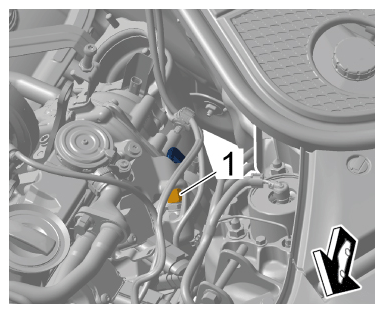

   Unscrewing union nut on left rail

5. Unscrew union nut -1-  on high-pressure fuel line at the right using > T40055 - socket-wrench insert  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

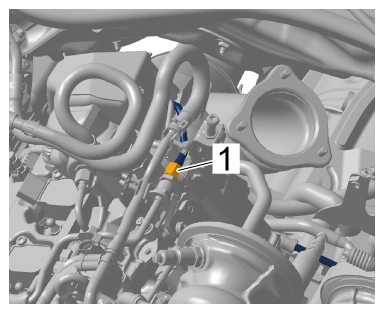

   Unscrewing union nut on high-pressure fuel line at the right

   Information

   • Open connections and lines must be closed off using suitable stoppers or caps.
6. Unscrew screws -1-  and guide out fuel line with holders -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

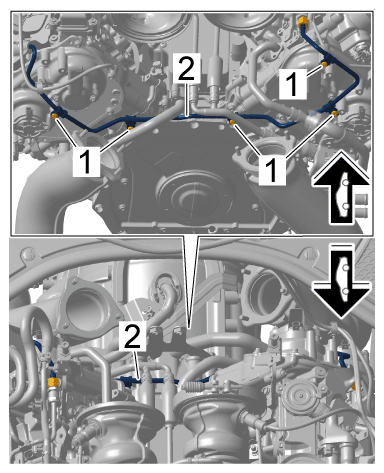

   Removing fuel line
