Section 6 (24 Fuel System - Electronic Injection 3.0L Turbo -- 971 - PANAMERA (971))
>>
WM, 249019 Removing And Installing Fuel Line (High-Pressure, Left) (V6 Turbo)
>>
Component Information
>>
Installation Position Of Fuel Line (High-Pressure, Left)
Installation Position Of Fuel Line (High-Pressure, Left)
WARNING:
This page is about a different variant/trim than selected.

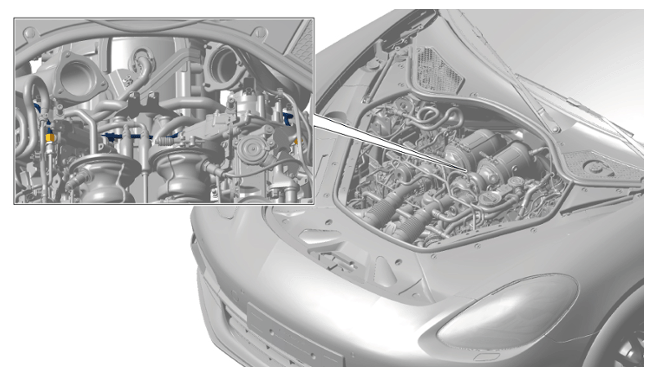

Fig 1: Identifying Fuel Line (High-Pressure, Left) Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation position of fuel line (high-pressure, left)
