Removing The Injector Valve (Injector)

WARNING: This page is about a different variant/trim than selected.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

→ Secure collection containers/vessels to prevent them from tipping over.

NOTE: Dirt on injection system components

Material damage
Rough-running engine
Bad exhaust emissions
→ Thoroughly clean connection points and adjacent areas before loosening them. If the engine is very dirty, wash it before starting disassembly work.

→ Lay removed parts on a clean surface and cover them. Do not use fibre-shedding cloths.

→ Carefully cover components or seal them if repair work will not be carried out immediately. Place rubber caps on connections. Seal intake openings with film or adhesive tape.

→ Only install clean parts. Do not take spare parts out of the packaging until just before installation.

→ Never use compressed air when the system is open. Do not move the vehicle.

Information

The removal and installation of the injector valves is described using tools from the > T10133C - tool kit :
Puller T10133/2A
Impact hammer T10133/3
Assembly cone T10133/5
Assembly sleeve T10133/6
Calibrating sleeve T10133/7+8
Calibration sleeve > T90011 - tool kit (HDEV5)
Assembly pin T10133/9
Sleeve T10133/18A
Puller > T10498 - disassembly tool
M8 screw T10133/21
Brush > T90006 - cleaning tool
Teflon sealing ring

Information

The steps required for removal are shown on one side. The steps required for removal are identical on both sides.

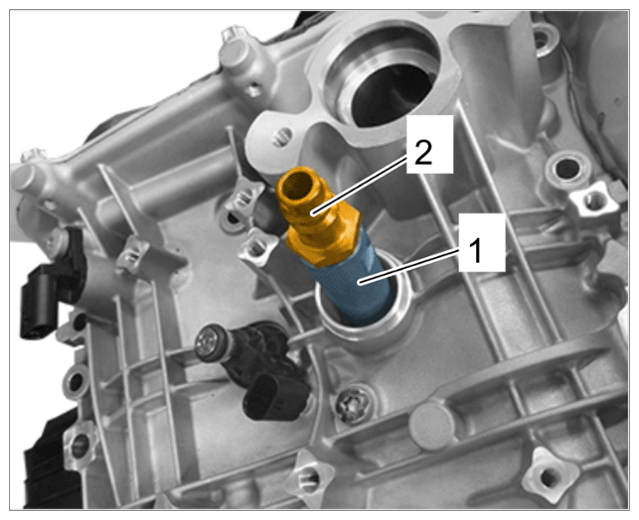

Screw in > T40012 - adapter-1- with compressed air adapter -2- into the spark plug bore and tighten by hand.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adapter in spark plug bore for compressed air connection

Information
- Always comply with the procedure described here.
- Set compressed air supply to maximum 1 bar.
Set compressed air supply to max. 1 bar and connect compressed air hose -2- to adapter -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Compressed air connection on adapter in spark plug thread
Keep turning the crankshaft using the vibration damper until the valves on the relevant cylinder are closed.
You will hear a distinct change in the noise!

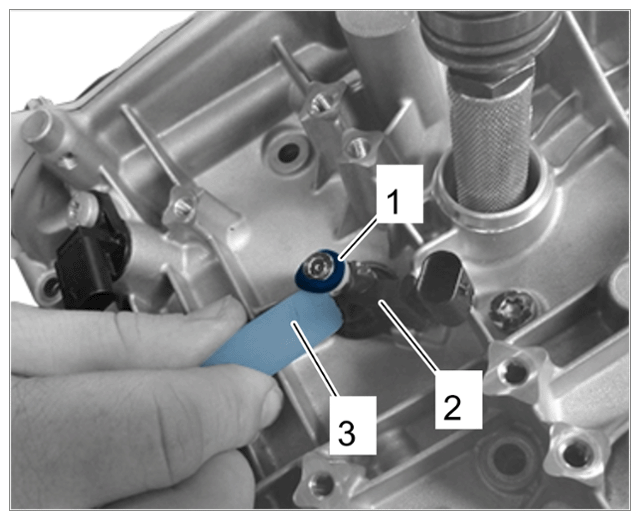

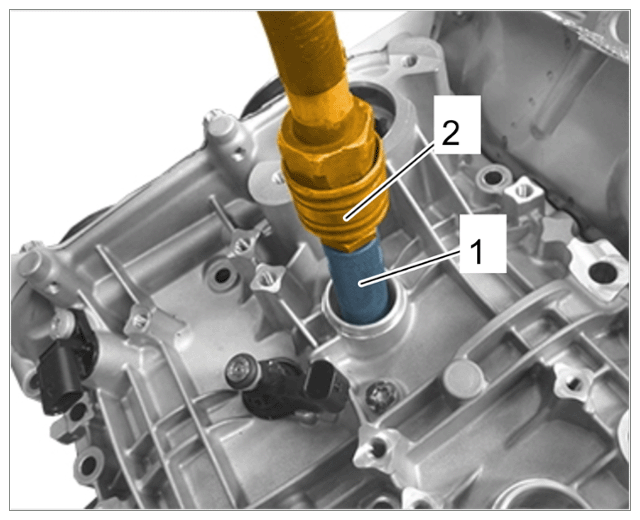

Remove sealing ring -1- on injector -2- at the top using a plastic wedge -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing ring on injector, top
Cover the injector opening at the top with adhesive tape to prevent dirt from escaping.
Information
- When pulling out the injector valve, compressed air will escape from the bore.
- This will blow out any dirt particles. Wear protective goggles!
Extraction tool for injectors:
- V6 2.9-litre engines: > T10133/19 - Puller
Only required if injector valve remains stuck in the cylinder head:

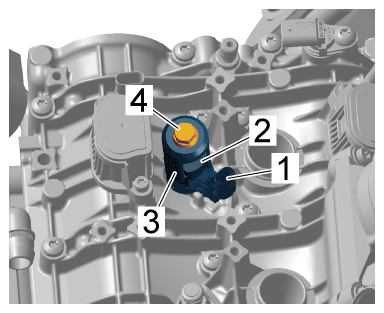

Remove injector valve -1- from the cylinder head.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Injector valve
1. 6.1 Using > V.A.G 1783 - torque wrench 2-10 Nm (1.5 - 7.5 ftlb.) , set a torque of 5 Nm (3.5 ftlb.).
2. 6.2 Insert puller -2- into the groove on injector valve -1- .
3. 6.3 Fit puller -3- .
4. 6.4 Loosen M8 screw -4- to the prescribed torque > Tightening torque 5 Nm (3.7 ftlb.)
Only required if the injector valve cannot be released:

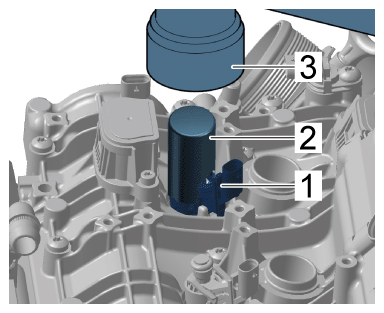

Loosen injector valve -1- using sleeve -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Injector valve and sleeve
1. 7.1 Remove extraction tool.
2. 7.2 Push sleeve -2- over the injector valve -1- .
3. 7.3 Using a hammer -3- , carefully tap several times on the impact sleeve -2- .
Carefully clean the injector slot on the cylinder head.
> WM, 244029 CLEAN INJECTOR SLOT
Clean injector valves, which will be re-used, in the ultrasonic cleaning bath and dry them.
