Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Information

The steps required for removal are shown on one side. The steps required for removal are identical on both sides.

  1. Remove spark plugs.

    > WM, 287020 REMOVING AND INSTALLING SPARK PLUGS

  2. Remove fuel collection pipe.

    > WM, 243019 REMOVING AND INSTALLING FUEL COLLECTION PIPE (V6 TURBO)

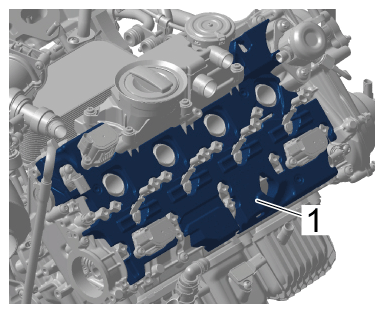

  3. Remove sound absorber -1-  .
    G15876863Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sound absorber

  4. Spray fuel injector valves in the cylinder head with Caramba EDI special solvent for injectors and leave it to take effect.
