Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install reinforcement.

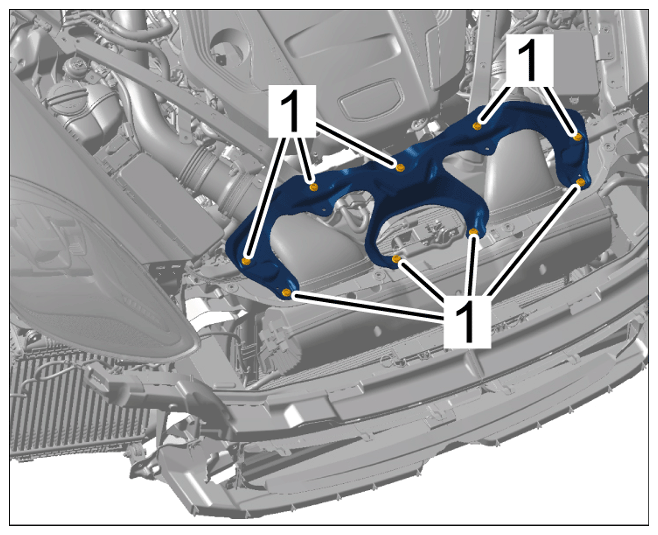

Tighten screws -1- to > Tightening torque 20 Nm (15 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing reinforcement
Secure front apron.
> 631519 REMOVING AND INSTALLING FRONT APRON
Install engine cover.
> WM, 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 TURBO)
