Installing Air-Cleaner Cowl

1. Install air-cleaner cowl -1-  .
   1. 1.1 Tighten screw-type clamp -2-  to > Tightening torque 3.5 Nm (2.5 ftlb.)  .
   2. 1.2 Tighten screw-type clamp -3-  to > Tightening torque 3.5 Nm (2.5 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

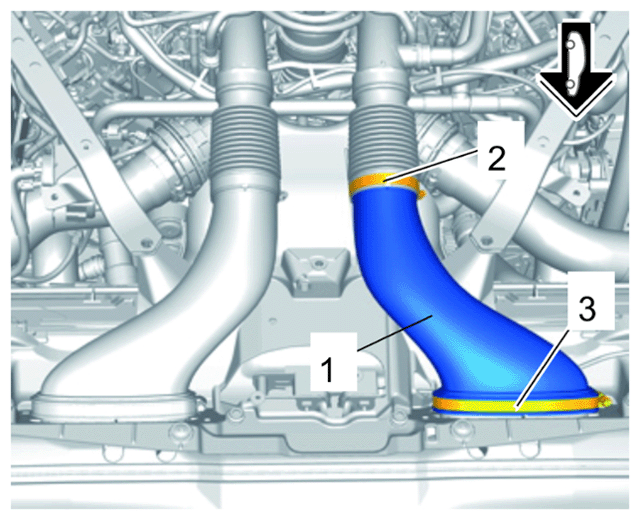

Air-cleaner cowl
