Removing Air Cleaner Housing
WARNING: This page is about a different variant/trim than selected.

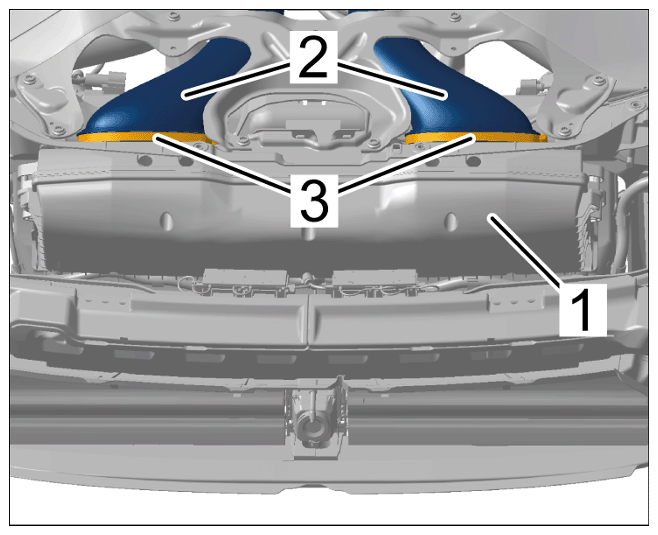

- Loosen screw-type clamps -3-
and pull cowls -2-
off the air cleaner housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Loosening air cleaner housing

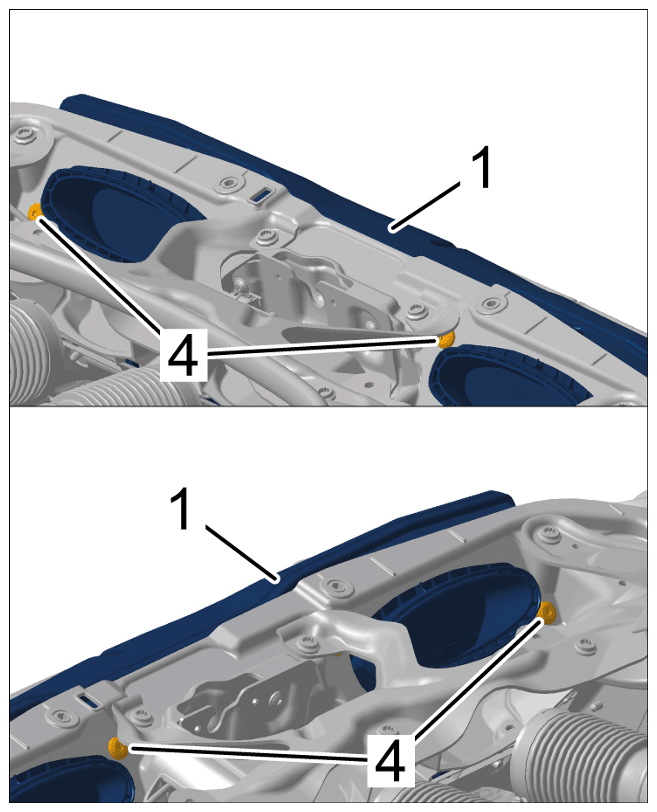

- Unscrew and remove screws -4-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unscrewing screws

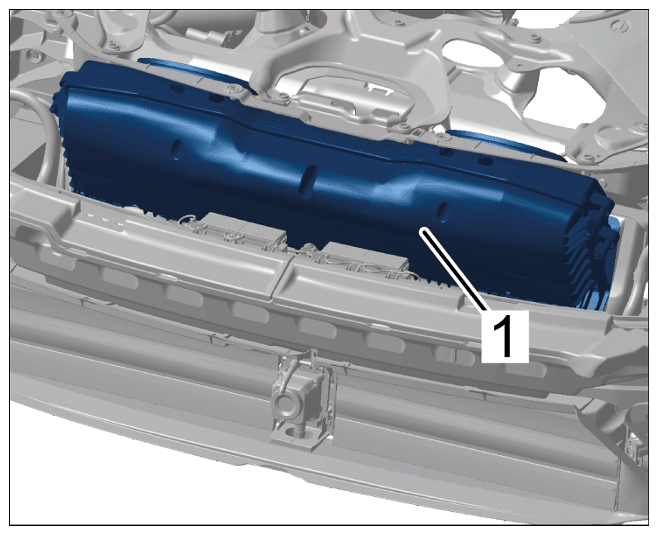

- Guide air cleaner housing -1-
out of the lock carrier and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Guiding out air cleaner housing
