Remove Air-Cleaner Element

WARNING: This page is about a different variant/trim than selected.
  1. Loosen screws in the sequence -5 to 1-  .

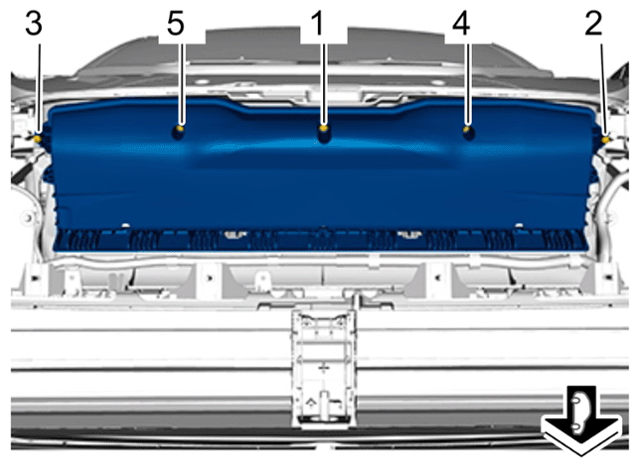

    Fig 1: Air Cleaner Housing Screws Loosening Sequence
    G15876821Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air cleaner housing

  2. Open air cleaner lid by pushing it forward and guide it out.
  3. Remove air-cleaner element.
  4. Clean the air cleaner housing.
