Remove Camshaft Sensor (Outlet Camshaft)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

  1. Remove camshaft sensor -1-  .
    1. 1.1 Release and disconnect electric plug connection -2-  .
    2. 1.2 Unscrew screw -3-  .
      1. 1.2.1 At the camshaft sensor of the exhaust camshaft cylinder bank 2, the thermal insulation must also be lifted.
    3. 1.3 Remove camshaft sensor -1-  .

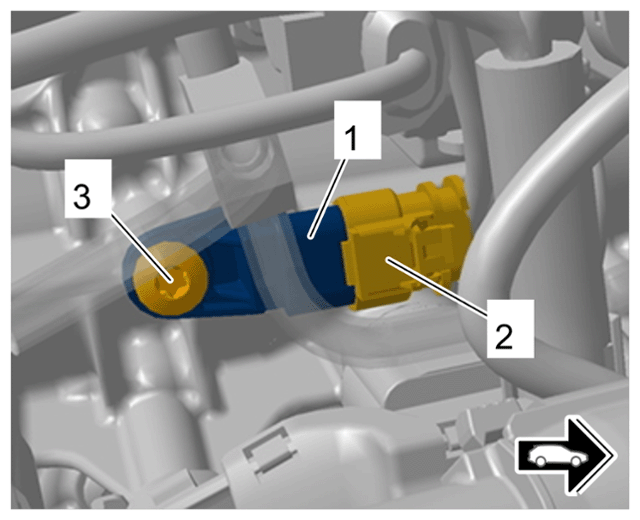

      G15878844Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Camshaft sensor for outlet camshafts
