Section 5 (39 Final Drive Differential, Differential Lock 3.0L Turbo -- 971 - PANAMERA (971))
>>
WM, 395955 Replacing Sealing Ring For All-Wheel Drive Flange Shaft
>>
Tools
WM, 395955 Replacing Sealing Ring For All-Wheel Drive Flange Shaft: Tools
WARNING:
This page is about a different variant/trim than selected.
Tool denomination
Type
Tool number
extractor tool
VW tool
> T20143
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

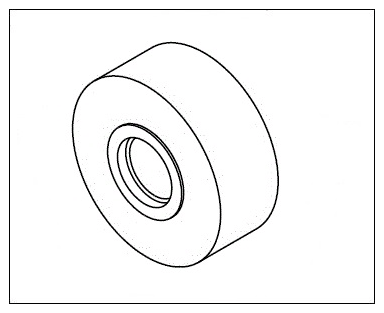

Pressure piece
Special tool
> 9941
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

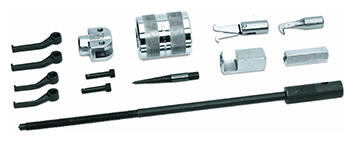

Puller set
Vehicle-specific workshop equipment
> VAS 6965
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

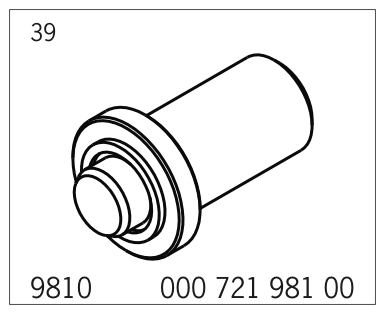

pressure piece
Special tool
> 9810
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
